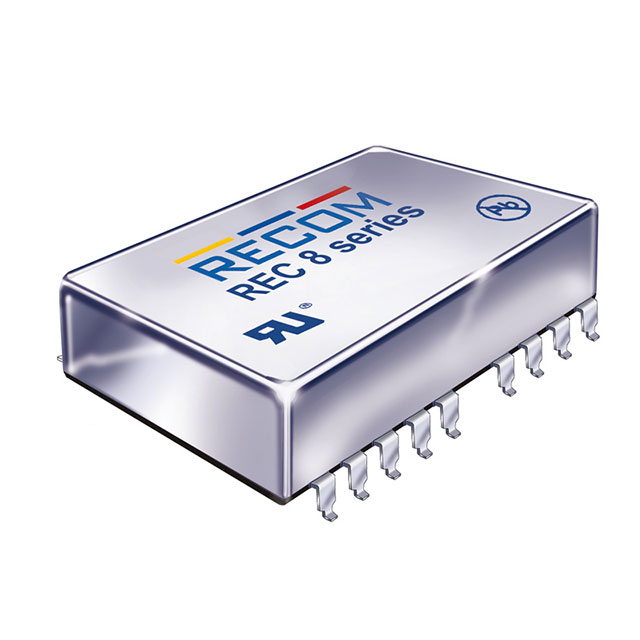

REC8-1212SRW/H2/A/M/SMD

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - SMD 8W DC/DC 2KV REG 2:1 9-18VIN 12VOUT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

REC8-1212SRW/H2/A/M/SMD

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - SMD 8W DC/DC 2KV REG 2:1 9-18VIN 12VOUT

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	REC8-1212SRW/H2/A/M/SMD

Applications	ITE (Commercial), Medical
Control Features	Active High, Enable
Current - Output (Max) [Max]	666 mA
Efficiency	86 %
Features	Remote On/Off, OCP, SCP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	24-SMD Module, 18 Leads
Power (Watts)	8 W
Size / Dimension [x]	32 mm
Size / Dimension [x]	1.26 in
Size / Dimension [y]	19.9 mm
Size / Dimension [y]	0.78 in
Size / Dimension [z]	11.2 mm
Size / Dimension [z]	0.44 "
Type	Isolated Module
Voltage - Input (Max) [Max]	18 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	2000 V
Voltage - Output 1	12 V

REC8-S_DRW(Z) Series

Isolated DC/DC Converters - Through Hole 8W DC/DC 2kV REG 2:1 4.5-9Vin +/-12Vout

Part	Type	Features	Package / Case	Package / Case	Current - Output (Max) [Max]	Voltage - Output 1	Voltage - Input (Max) [Max]	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Power (Watts)	Control Features	Applications	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Number of Outputs	Voltage - Input (Min) [Min]	Mounting Type	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2	Current - Output (Max)
RECOM Power REC8-0515SRW/H2/A/M	Isolated Module	OCP Remote On/Off SCP	9 PC Pad	24-DIP Module	533 mA	15 V	9 V	86 %	-40 °C	71 °C	2000 V	8 W	Active High Enable	ITE (Commercial) Medical	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	1	4.5 V	Through Hole
RECOM Power REC8-2405SRW/H3/A/M	Isolated Module	OCP Remote On/Off SCP	9 PC Pad	24-DIP Module	1.6 A	5 V	36 V	87 %	-40 °C	85 °C	3000 V	8 W	Active High Enable	ITE (Commercial) Medical	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	1	18 V	Through Hole
RECOM Power REC8-4812SRW/H3/A/M	Isolated Module	OCP Remote On/Off SCP	9 PC Pad	24-DIP Module	666 mA	12 V	75 V	86 %	-40 °C	85 °C	3000 V	8 W	Active High Enable	ITE (Commercial) Medical	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	1	36 V	Through Hole
RECOM Power REC8-4805SRWZ/H2/A/M	Isolated Module	OCP Remote On/Off SCP	9 PC Pad	24-DIP Module	1.6 A	5 V	75 V	86 %	-40 °C	71 °C	2000 V	8 W	Active High Enable	ITE (Commercial) Medical	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	1	18 V	Through Hole
RECOM Power REC8-1212DRW/H2/A/M	Isolated Module	OCP Remote On/Off SCP	9 PC Pad	24-DIP Module		12 V	18 V	86 %	-40 °C	85 °C	2000 V	8 W	Active High Enable	ITE (Commercial) Medical	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	2	9 V	Through Hole	333 mA	333 mA	-12 V
RECOM Power REC8-2405DRWZ/H2/A/M/SMD-R	Isolated Module	OCP Remote On/Off SCP		24-SMD Module 18 Leads		5 V	36 V	83 %	-40 °C	71 °C	2000 V	8 W	Active High Enable	ITE (Commercial) Medical	0.44 "	19.9 mm	1.26 in	11.2 mm	32 mm	0.78 in	2	9 V	Surface Mount		800 mA	-5 V	800 mA
RECOM Power REC8-123.3SRW/H2/A/M	Isolated Module	OCP Remote On/Off SCP	9 PC Pad	24-DIP Module	1.6 A	3.3 V	18 V	85 %	-40 °C	85 °C	2000 V	8 W	Active High Enable	ITE (Commercial) Medical	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	1	9 V	Through Hole
RECOM Power REC8-1212SRW/H2/A/M/SMD	Isolated Module	OCP Remote On/Off SCP		24-SMD Module 18 Leads	666 mA	12 V	18 V	86 %	-40 °C	85 °C	2000 V	8 W	Active High Enable	ITE (Commercial) Medical	0.44 "	19.9 mm	1.26 in	11.2 mm	32 mm	0.78 in	1	9 V	Surface Mount
RECOM Power REC8-1215SRW/H3/A/M	Isolated Module	OCP Remote On/Off SCP	9 PC Pad	24-DIP Module	533 mA	15 V	18 V	86 %	-40 °C	85 °C	3000 V	8 W	Active High Enable	ITE (Commercial) Medical	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	1	9 V	Through Hole
RECOM Power REC8-0515SRW/H2/A/M/SMD-R	Isolated Module	OCP Remote On/Off SCP		24-SMD Module 18 Leads	533 mA	15 V	9 V	86 %	-40 °C	71 °C	2000 V	8 W	Active High Enable	ITE (Commercial) Medical	0.44 "	19.9 mm	1.26 in	11.2 mm	32 mm	0.78 in	1	4.5 V	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	15	$ 34.11
Sager	N/A	1	$ 35.60
		5	$ 34.47
		10	$ 32.88
		25	$ 31.88
		50	$ 31.42
		100	$ 30.53
		250	$ 28.50

Description

General part information

REC8-S_DRW(Z) Series

Isolated DC/DC Converters - Through Hole 8W DC/DC 2kV REG 2:1 4.5-9Vin +/-12Vout
