YB25RKW01-6B-JB

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

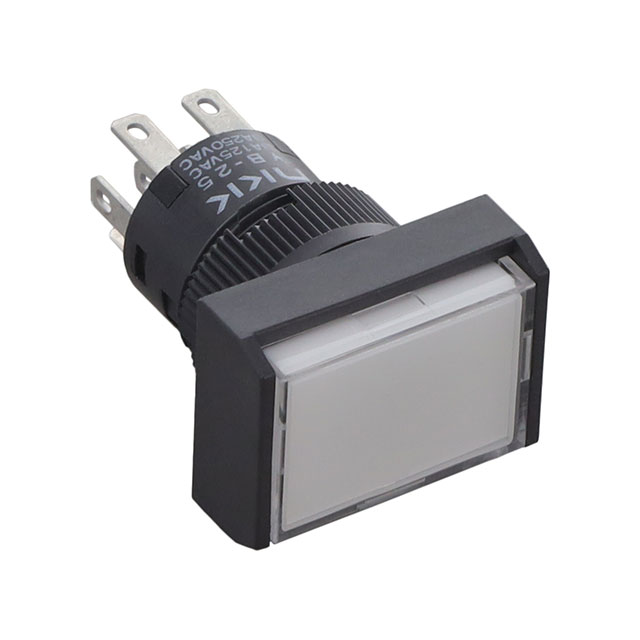

YB25RKW01-6B-JB

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB25RKW01-6B-JB

Actuator Marking	No Marking
Actuator Type	Rectangular, Button
Circuit	DPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Features	Voltage Reduction Lighting
Illumination Type, Color	White, LED
Illumination Voltage (Nominal)	3.3 VDC
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

YB25RK Series

Part	Mechanical Life	Voltage Rating - AC	Features	Actuator Type	Type	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Voltage (Nominal)	Panel Cutout Dimensions [diameter]	Actuator Marking	Voltage Rating - DC	Switch Function	Termination Style	Termination Style	Termination Style	Color - Actuator/Cap	Illumination Type, Color	Mounting Type	Circuit	Current Rating (Amps)
NKK Switches YB25RKW01-5D-JB	1000000 Cycles	125 V	Voltage Reduction Lighting	Rectangular Button	Illuminated Standard	100000 Cycles	50 °C	-25 °C	2 VDC	16 mm	No Marking	30 V	On-Mom	0.11 in	Quick Connect Solder	2.8 mm	Clear	Amber LED	Panel Mount Front	DPDT	3 A
NKK Switches YB25RKG01-5D12-JB	1000000 Cycles	28 V	Voltage Reduction Lighting	Rectangular Button	Illuminated Standard	100000 Cycles	50 °C	-25 °C	12 VDC	16 mm	No Marking	28 V	On-Mom	0.11 in	Quick Connect Solder	2.8 mm	Clear	Amber LED	Panel Mount Front	DPDT	0.4 VA
NKK Switches YB25RKW01-6B-JB	1000000 Cycles	125 V	Voltage Reduction Lighting	Rectangular Button	Illuminated Standard	100000 Cycles	50 °C	-25 °C	3.3 VDC	16 mm	No Marking	30 V	On-Mom	0.11 in	Quick Connect Solder	2.8 mm	Clear	LED White	Panel Mount Front	DPDT	3 A
NKK Switches YB25RKW01-5C24-JC	1000000 Cycles	125 V	Voltage Reduction Lighting	Rectangular Button	Illuminated Standard	100000 Cycles	50 °C	-25 °C	24 V	16 mm	No Marking	30 V	On-Mom	0.11 in	Quick Connect Solder	2.8 mm	Clear (Red Filter/Diffuser)	LED Red	Panel Mount Front	DPDT	3 A
NKK Switches YB25RKW01-1F05-JB	1000000 Cycles	125 V		Rectangular Button	Illuminated Standard	100000 Cycles	50 °C	-25 °C	5 VDC	16 mm		30 V	On-Mom	0.11 in	Quick Connect Solder	2.8 mm	Clear	Green LED	Panel Mount Front	DPDT	3 A
NKK Switches YB25RKW01-5C-JB	1000000 Cycles	125 V	Voltage Reduction Lighting	Rectangular Button	Illuminated Standard	100000 Cycles	50 °C	-25 °C	1.9 VDC	16 mm	No Marking	30 V	On-Mom	0.11 in	Quick Connect Solder	2.8 mm	Clear	LED Red	Panel Mount Front	DPDT	3 A
NKK Switches YB25RKG01	1000000 Cycles	28 V	Voltage Reduction Lighting	Plunger for Cap	Standard	100000 Cycles	70 °C	-25 °C		16 mm	No Marking	28 V	On-Mom	0.11 in	Quick Connect Solder	2.8 mm			Panel Mount Front	DPDT	0.4 VA
NKK Switches YB25RKG01-6G-JB	1000000 Cycles	28 V	Voltage Reduction Lighting	Rectangular Button	Illuminated Standard	100000 Cycles	50 °C	-25 °C	3.6 VDC	16 mm	No Marking	28 V	On-Mom	0.11 in	Quick Connect Solder	2.8 mm	Clear	Blue LED	Panel Mount Front	DPDT	0.4 VA
NKK Switches YB25RKW01-CB	1000000 Cycles	125 V	Voltage Reduction Lighting	Rectangular Button	Standard	100000 Cycles	70 °C	-25 °C		16 mm	No Marking	30 V	On-Mom	0.11 in	Quick Connect Solder	2.8 mm	Red		Panel Mount Front	DPDT	3 A
NKK Switches YB25RKW01-5C12-JC	1000000 Cycles	125 V	Voltage Reduction Lighting	Rectangular Button	Illuminated Standard	100000 Cycles	50 °C	-25 °C	12 VDC	16 mm	No Marking	30 V	On-Mom	0.11 in	Quick Connect Solder	2.8 mm	Clear (Red Filter/Diffuser)	LED Red	Panel Mount Front	DPDT	3 A
