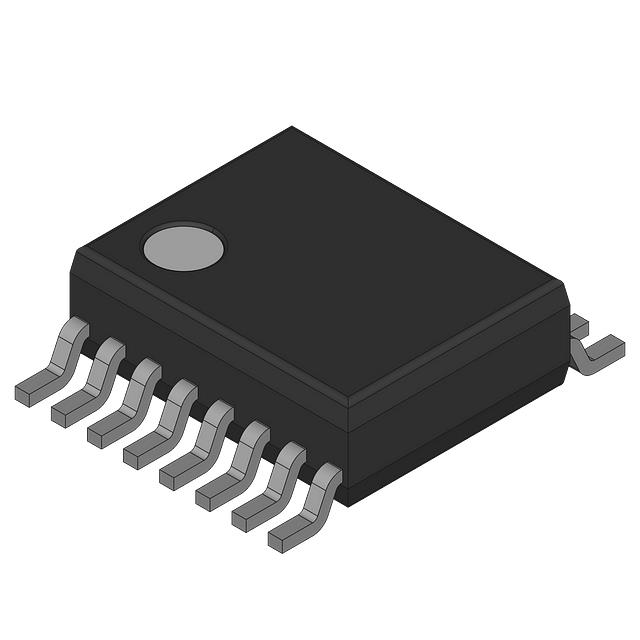

LB11867RV-TLM-H

Active

Sanyo

VARIABLE SPEED SINGLE-PHASE FULL

Search across all available documentation for this part.

Active

Sanyo

VARIABLE SPEED SINGLE-PHASE FULL

Technical Specifications

Parameters and characteristics for this part

Specification	LB11867RV-TLM-H

Applications	Fan Controller
Function	Controller - Commutation, Direction Management
Interface	Parallel
Motor Type - AC, DC	Brushless DC (BLDC)
Mounting Type	Surface Mount
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 °C
Output Configuration	Pre-Driver - Half Bridge (2)
Package / Case	16-LSSOP
Supplier Device Package	16-SSOP
Voltage - Supply [Max]	16 V
Voltage - Supply [Min]	5.5 V

Part	Output Configuration	Applications	Voltage - Supply [Max]	Voltage - Supply [Min]	Function	Package / Case	Mounting Type	Motor Type - AC, DC	Operating Temperature [Max]	Operating Temperature [Min]	Interface	Supplier Device Package
Sanyo LB11867RV-TLM-H	Pre-Driver - Half Bridge (2)	Fan Controller	16 V	5.5 V	Controller - Commutation Direction Management	16-LSSOP	Surface Mount	Brushless DC (BLDC)	90 °C	-30 °C	Parallel	16-SSOP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	389	$ 0.77

General part information

Motor Driver Parallel 16-SSOP

Technical documentation and resources

No documents available
