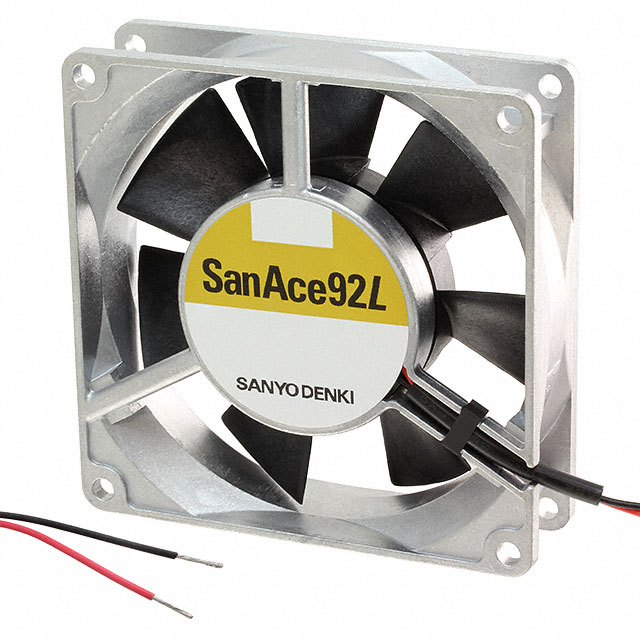

9LG0912H4002

Active

Sanyo Denki America Inc.

FAN AXIAL 92X25MM 12VDC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXIAL 92X25MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Lifetime @ Temp.	Air Flow	Air Flow	Voltage - Rated	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Width [y]	Material - Frame	RPM	Approval Agency	Bearing Type	Features	Material - Blade	Noise	Termination	Static Pressure	Static Pressure	Fan Type	Weight	Weight
Sanyo Denki America Inc. 9LG0912S4001	180000 Hrs	1.67 m³/min	59.7 CFM	12 VDC	13.2 VDC	10.8 VDC	0.22 A	2.64 W	-20 °C	70 °C	-20 C	70 °C	25 mm	Aluminum	3850 RPM	CSA TUV UL	Ball	Locked Rotor Protection Speed Sensor (Tach)	Plastic	37 dB	3 Wire Leads	0.25 in H2O	62.3 Pa	Tubeaxial
Sanyo Denki America Inc. 9LG0912H4002	180000 Hrs			12 VDC	13.2 VDC	10.8 VDC	150 mA	1.8 W	-20 °C	70 °C	-20 C	70 °C	25 mm	Aluminum	3150 RPM	CSA TUV UL	Ball		Plastic	32 dB	2 Wire Leads	0.17 in H2O	42.3 Pa	Tubeaxial
Sanyo Denki America Inc. 9LG0912P4H001	180000 Hrs			12 VDC	13.2 VDC	10.8 VDC	150 mA	1.8 W	-20 °C	70 °C	-20 C	70 °C	25 mm	Aluminum	3150 RPM	CSA TUV UL	Ball	PWM Control Speed Sensor (Tach)	Plastic	32 dB	4 Wire Leads	0.17 in H2O	42.3 Pa	Tubeaxial	150.14 g	0.331 lb

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 48.7 CFM (1.36mł/min) 2 Wire Leads
