PME261JC5470KR30

Active

KEMET

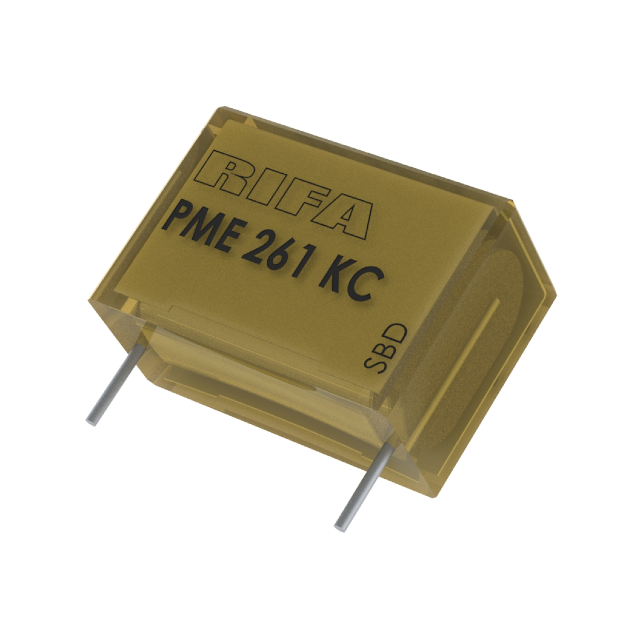

CAP, 0.047ΜF, 1 KV, 10%, PAPER, RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsKEM_F3070_PME261.pdf Manufacturer Catalogue EN

PME261JC5470KR30

Active

KEMET

CAP, 0.047ΜF, 1 KV, 10%, PAPER, RADIAL

Deep-Dive with AI

DocumentsKEM_F3070_PME261.pdf Manufacturer Catalogue EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PME261JC5470KR30

Applications	General Purpose
Dielectric Material	Paper, Metallized
Height - Seated (Max)	14 mm
Height - Seated (Max) [Max]	0.551 "
Lead Spacing	20.3 mm
Lead Spacing	0.799 in
Mounting Type	Through Hole
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Size / Dimension [x]	24 mm
Size / Dimension [x]	0.945 in
Size / Dimension [y]	7.6 mm
Size / Dimension [y]	0.299 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	500 V
Voltage Rating - DC	1 kVDC
Voltage Rating - DC	1 kV

PME261 Series

Part	Height - Seated (Max)	Height - Seated (Max) [Max]	Dielectric Material	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Applications	Lead Spacing	Lead Spacing	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Package / Case	Termination	Capacitance	Voltage Rating - DC	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage Rating - DC	Height - Seated (Max) [Max]	Size / Dimension [y]
KEMET PME261EC6100KR30	14 mm	0.551 "	Paper Metallized	300 V	100 °C	-40 °C	Through Hole	General Purpose	20.3 mm	0.799 in	24 mm	7.6 mm	0.945 in	0.299 in	10 %	Radial	PC Pins	100000 pF
KEMET PME261KE6470KR30			Paper Metallized	220 V	100 °C	-40 °C	Through Hole	General Purpose	25.4 mm	1 in	30.5 mm	17.3 mm	1.201 in	0.681 in	10 %	Radial	PC Pins	0.47 µF	400 V	10.6 mm	0.417 in
KEMET PME261JB5330KR30			Paper Metallized	500 V	100 °C	-40 °C	Through Hole	General Purpose	15.2 mm	0.598 in	18.5 mm	7.8 mm	0.728 in	0.307 in	10 %	Radial	PC Pins	0.033 çF	1 kVDC	13.5 mm	0.532 "	1 kV
KEMET PME261JC5470KR30	14 mm	0.551 "	Paper Metallized	500 V	100 °C	-40 °C	Through Hole	General Purpose	20.3 mm	0.799 in	24 mm	7.6 mm	0.945 in	0.299 in	10 %	Radial	PC Pins		1 kVDC			1 kV
KEMET PME261KA5100KR19T0			Paper Metallized	220 V	100 °C	-40 °C	Through Hole	General Purpose			13.5 mm	3.9 mm	0.531 in	0.154 in	10 %	Radial	PC Pins	10000 pF	400 V	7.5 mm	0.295 in
KEMET PME261KC6220KR30		0.413 in	Paper Metallized	220 V	100 °C	-40 °C	Through Hole	General Purpose	15.2 mm	0.598 in	18.5 mm		0.728 in	0.205 "	10 %	Radial	PC Pins	0.22 µF	400 V				10.5 mm	5.2 mm
KEMET PME261KE7100KR30			Paper Metallized	220 V	100 °C	-40 °C	Through Hole	General Purpose	25.4 mm	1 in	30.5 mm	15.3 mm	1.201 in	0.602 in	10 %	Radial	PC Pins	1 µF	400 V	22 mm	0.866 in
