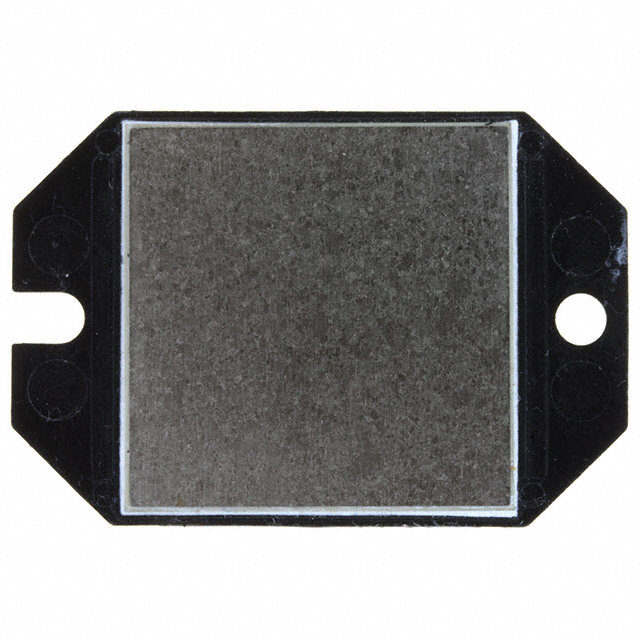

VKI75-06P1

Active

IXYS

IGBT MOD 600V 69A 208W ECO-PAC2

Search across all available documentation for this part.

Active

IXYS

IGBT MOD 600V 69A 208W ECO-PAC2

Technical Specifications

Parameters and characteristics for this part

Specification	VKI75-06P1

Configuration	Full Bridge Inverter
Current - Collector (Ic) (Max) [Max]	69 A
Current - Collector Cutoff (Max) [Max]	800 µA
IGBT Type	NPT
Input	Standard
Input Capacitance (Cies) @ Vce	2.8 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	ECO-PAC2
Power - Max [Max]	208 W
Supplier Device Package	ECO-PAC2
Vce(on) (Max) @ Vge, Ic	2.8 V
Voltage - Collector Emitter Breakdown (Max) [Max]	600 V

Part	Current - Collector (Ic) (Max) [Max]	Configuration	Input	Input Capacitance (Cies) @ Vce	Supplier Device Package	Mounting Type	Current - Collector Cutoff (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	NTC Thermistor	Voltage - Collector Emitter Breakdown (Max) [Max]	Power - Max [Max]	Vce(on) (Max) @ Vge, Ic	IGBT Type	Package / Case
IXYS VKI75-06P1	69 A	Full Bridge Inverter	Standard	2.8 nF	ECO-PAC2	Chassis Mount	800 µA	150 °C	-40 °C		600 V	208 W	2.8 V	NPT	ECO-PAC2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IGBT Module NPT Full Bridge Inverter 600 V 69 A 208 W Chassis Mount ECO-PAC2
