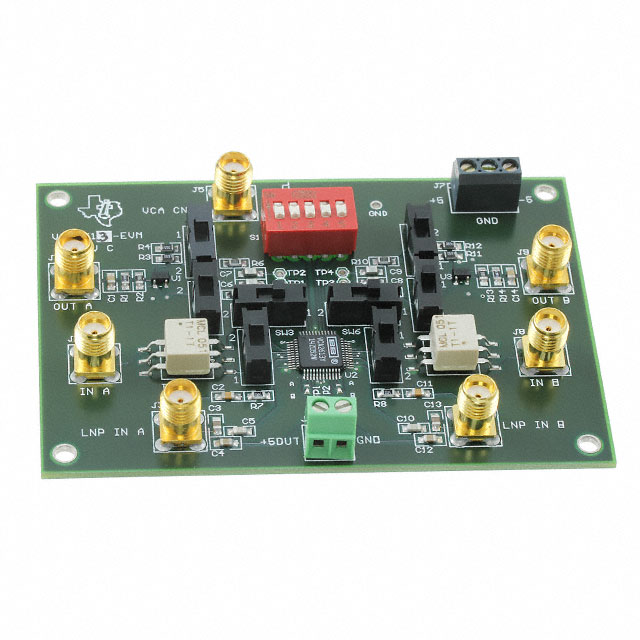

VCA2613EVM

Obsolete

Texas Instruments

VCA2613EVM

Search across all available documentation for this part.

DocumentsVCA2613

Obsolete

Texas Instruments

VCA2613EVM

DocumentsVCA2613

Technical Specifications

Parameters and characteristics for this part

Specification	VCA2613EVM

-3db Bandwidth	40 MHz
Board Type	Fully Populated
Channels per IC	2 - Dual
Current - Output / Channel [custom]	40 mA
Output Type	Differential
Slew Rate	300 V/µs
Supplied Contents	Board(s)
Utilized IC / Part	VCA2613
Voltage - Supply, Single/Dual (±) [Max]	5.25 V
Voltage - Supply, Single/Dual (±) [Min]	4.75 V

Part	Voltage - Supply Span (Min) [Min]	Current - Input Bias	-3db Bandwidth	Output Type	Number of Circuits	Mounting Type	Voltage - Supply Span (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Slew Rate	Current - Output / Channel [custom]	Supplier Device Package	Gain Bandwidth Product	Package / Case	Channels per IC	Supplied Contents	Board Type	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Utilized IC / Part
Texas Instruments VCA2613Y/2K	4.75 V	1 nA	40 MHz	Differential	2	Surface Mount	5.25 V	85 °C	-40 °C	300 V/µs	40 mA	48-TQFP (7x7)	80 MHz	48-TQFP
Texas Instruments VCA2613Y/250	4.75 V	1 nA	40 MHz	Differential	2	Surface Mount	5.25 V	85 °C	-40 °C	300 V/µs	40 mA	48-TQFP (7x7)	80 MHz	48-TQFP
Texas Instruments VCA2613EVM			40 MHz	Differential						300 V/µs	40 mA				2 - Dual	Board(s)	Fully Populated	5.25 V	4.75 V	VCA2613

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 104.54

General part information

VCA2613 2 - Dual Channels per IC Variable Gain Amplifier Evaluation Board
