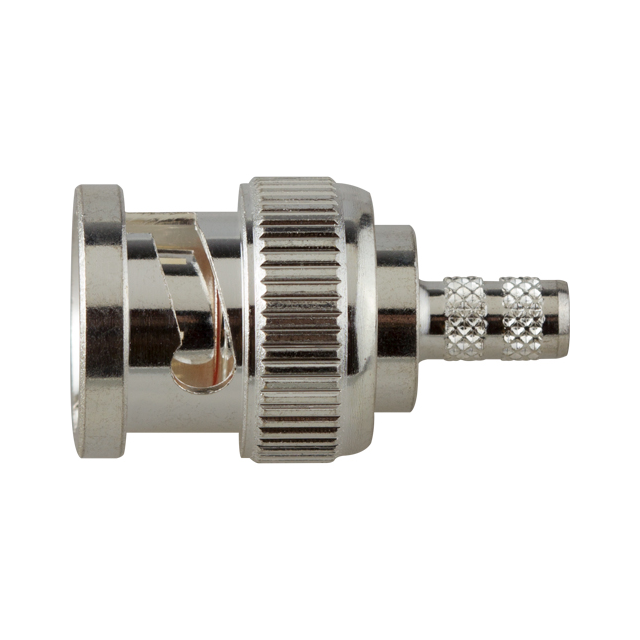

RFB-1106-2ST

Active

RF Industries

BNC MALE CRIMP; 50 OHMS

Search across all available documentation for this part.

Active

RF Industries

BNC MALE CRIMP; 50 OHMS

Technical Specifications

Parameters and characteristics for this part

Specification	RFB-1106-2ST

Body Finish	Silver
Body Material	Brass
Cable Group	Belden 8240, 141A, 9311, 58A, 8262, 9201, 9203, 141, 9310, 58C, RG-58
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Center Contact Plating	Frequency - Max [Max]	Dielectric Material	Center Contact Material	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Connector Type	Impedance	Housing Color	Connector Style	Number of Ports	Shield Termination	Mounting Type	Fastening Type	Voltage Rating	Body Finish	Contact Termination
RF Industries RFB-1106-C2	Gold	4 GHz	Polytetrafluoroethylene (PTFE)	Brass	Alpha 9848 LMR-200 MSI-22	-65 ░C	85 °C	Brass	Male Pin Plug	50 Ohms	Silver	BNC	1	Crimp	Free Hanging (In-Line)	Bayonet Lock	500 V	Nickel	Crimp
RF Industries RFB-1106-2ST	Gold	4 GHz	Polytetrafluoroethylene (PTFE)	Brass	141 141A 58A 58C 8262 9201 9203 9310 9311 Belden 8240 RG-58	-65 ░C	85 °C	Brass	Male Pin Plug	50 Ohms	Silver	BNC	1	Crimp	Free Hanging (In-Line)	Bayonet Lock	500 V	Silver	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
