XMC4100F64K128BAXQMA1

Active

Infineon Technologies

MCU, 80MHZ, ARM CORTEX-M4 ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XMC4100F64K128BAXQMA1

Active

Infineon Technologies

MCU, 80MHZ, ARM CORTEX-M4 ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XMC4100F64K128BAXQMA1

Connectivity	SPI, UART/USART, USB, LINbus, CANbus, I2C
Core Processor	ARM® Cortex®-M4
Core Size	32-Bit Single-Core
Data Converters	A/D 10x12b, D/A 2x12b
Mounting Type	Surface Mount
Number of I/O	35
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal

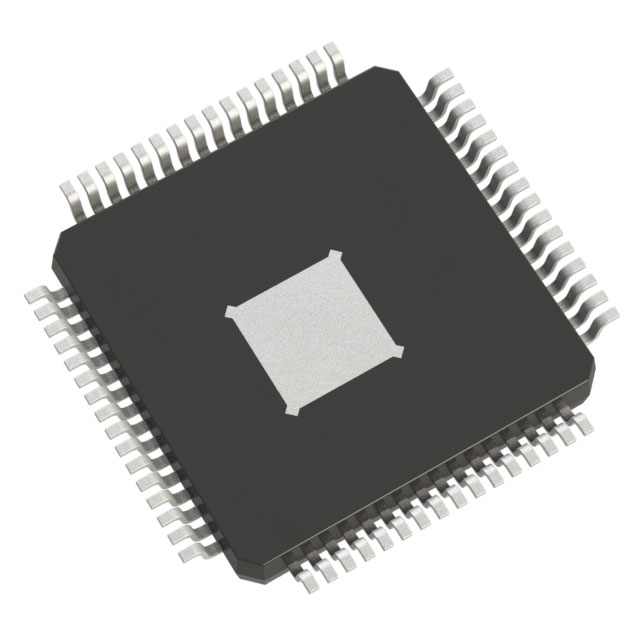

Package / Case	64-LQFP Exposed Pad
Program Memory Size	128 KB
Program Memory Type	FLASH
RAM Size	20 K
Speed	80 MHz
Supplier Device Package	PG-LQFP-64-19
Voltage - Supply (Vcc/Vdd) [Max]	3.63 V
Voltage - Supply (Vcc/Vdd) [Min]	3.13 V

XMC4100 Series

Part	Core Size	Mounting Type	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Core Processor	Data Converters	Package / Case	Connectivity	Program Memory Type	Program Memory Size	Oscillator Type	RAM Size	Operating Temperature [Max]	Operating Temperature [Min]	Speed	Supplier Device Package	Number of I/O
Infineon Technologies XMC4100Q48F128BAXUMA1	32-Bit Single-Core	Surface Mount	3.13 V	3.63 V	ARM® Cortex®-M4	A/D 9x12b D/A 2x12b	48-VFQFN Exposed Pad	CANbus I2C LINbus SPI UART/USART USB	FLASH	128 KB	Internal	20 K	85 °C	-40 °C	80 MHz	PG-VQFN-48-71	21 I/O
Infineon Technologies XMC4100F64K128BAXQMA1	32-Bit Single-Core	Surface Mount	3.13 V	3.63 V	ARM® Cortex®-M4	A/D 10x12b D/A 2x12b	64-LQFP Exposed Pad	CANbus I2C LINbus SPI UART/USART USB	FLASH	128 KB	Internal	20 K	125 °C	-40 °C	80 MHz	PG-LQFP-64-19	35

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 6.04
		10	$ 5.45
		25	$ 5.20
		160	$ 4.52
		320	$ 4.47
Newark	Each	1	$ 6.87
		10	$ 5.34
		25	$ 4.96
		50	$ 4.80
		100	$ 4.65

Description

General part information

XMC4100 Series

The XMC4100/4200 series belongs to the XMC4000 family of industrial microcontrollers based on the ARM Cortex-M4 processor core. the XMC4100/4200 series of microcontrollers take advantage of Infineon's decades of experience in microcontroller design, providing an optimized solution to meet the performance challenges of today's embedded control applications. The XMC4100/4200 series devices combine the extended functionality and performance of the ARM Cortex-M4 core with powerful on-chip peripheral subsystems and on-chip memory units.
