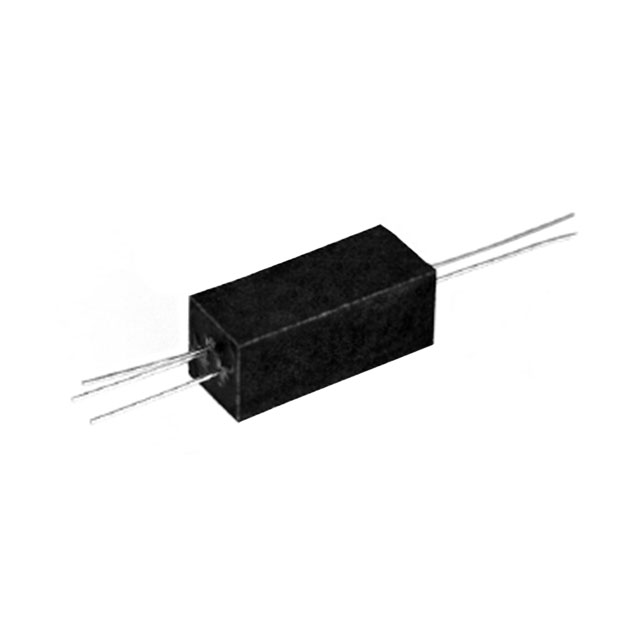

OPI127-032

Active

TT Electronics/Optek Technology

OPTOISO 15KV PUSH PULL

Search across all available documentation for this part.

Active

TT Electronics/Optek Technology

OPTOISO 15KV PUSH PULL

Technical Specifications

Parameters and characteristics for this part

Specification	OPI127-032

Current - DC Forward (If) (Max) [Max]	25 mA
Data Rate	250 KBd
Input Type	DC
Inputs - Side 1/Side 2 [custom]	0
Inputs - Side 1/Side 2 [custom]	1
Mounting Type	Through Hole
Number of Channels	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-55 °C
Output Type	Totem Pole, Push-Pull
Package / Case	Axial - 4 Leads
Propagation Delay tpLH / tpHL (Max)	5 µs
Rise / Fall Time (Typ) [custom]	100 ns
Rise / Fall Time (Typ) [custom]	100 ns
Supplier Device Package	Axial
Voltage - Forward (Vf) (Typ)	1.5 V
Voltage - Isolation	15000 VDC
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Number of Channels	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - DC Forward (If) (Max) [Max]	Mounting Type	Input Type	Package / Case	Inputs - Side 1/Side 2 [custom]	Inputs - Side 1/Side 2 [custom]	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Output Type	Data Rate	Propagation Delay tpLH / tpHL (Max)	Voltage - Isolation	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Operating Temperature [Max]	Operating Temperature [Min]
TT Electronics/Optek Technology OPI127-032	1	4.5 V	5.5 V	25 mA	Through Hole	DC	Axial - 4 Leads	0	1	1.5 V	Axial	Push-Pull Totem Pole	250 KBd	5 µs	15000 VDC	100 ns	100 ns	100 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 13.13

General part information

Logic Output Optoisolator 250kbps Push-Pull, Totem Pole 15000VDC 1 Channel CMTI Axial
