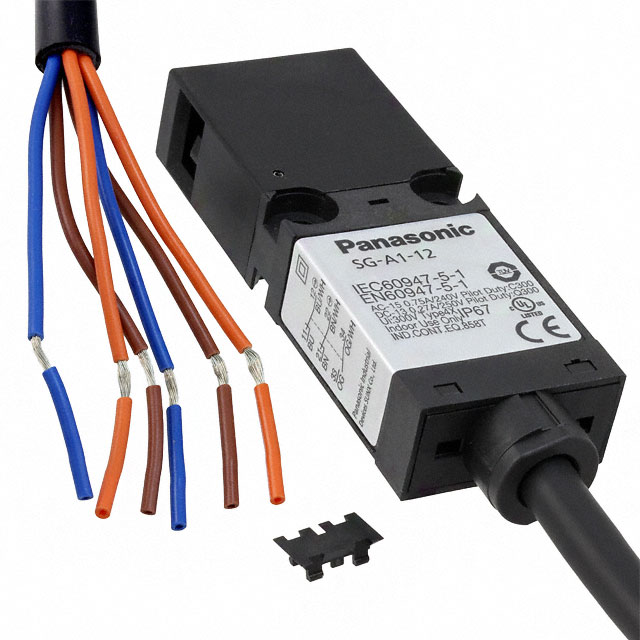

SG-A1-12-5
ActivePanasonic Industrial Automation Sales
INTERLOCK NON-LOCKING DPST
Deep-Dive with AI
Search across all available documentation for this part.
SG-A1-12-5
ActivePanasonic Industrial Automation Sales
INTERLOCK NON-LOCKING DPST
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SG-A1-12-5 |
|---|---|
| Actuator Type | Panel Disconnect |
| Approval Agency | CE, TUV, cULus |
| Circuit | DPST-NC, SPST-NO |
| Current Rating (Amps) | 2.5 A |
| Features | Cable Length 5m |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Termination Style | Cable Leads |
| Type | Non-Locking |
| Voltage Rating | 125 VAC, 30 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 109.00 | |
Description
General part information
SG-A1-12 Series
INTERLOCK NON-LOCKING DPST
Documents
Technical documentation and resources
No documents available
