Technical Specifications
Parameters and characteristics for this part
| Specification | AET00CC36-L |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 665 mA |
| Current - Output (Max) | 665 mA |
| Efficiency | 85 % |
| Features | Remote On/Off, OVP, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 71 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 7-DIP Module |
| Power (Watts) | 20 W |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [x] | 2 in |
| Size / Dimension [y] | 1.6 in |
| Size / Dimension [y] | 40.6 mm |
| Size / Dimension [z] | 0.48 in |
| Size / Dimension [z] | 12.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 15 V |
| Voltage - Output 2 | -15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information

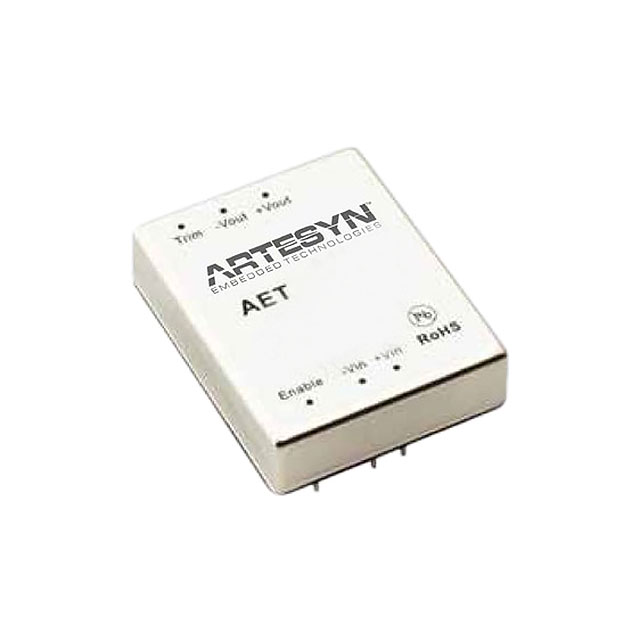

AET00CC Series
Isolated DC/DC Converters - Through Hole 20W 15V@0.665A 18-75Vin
