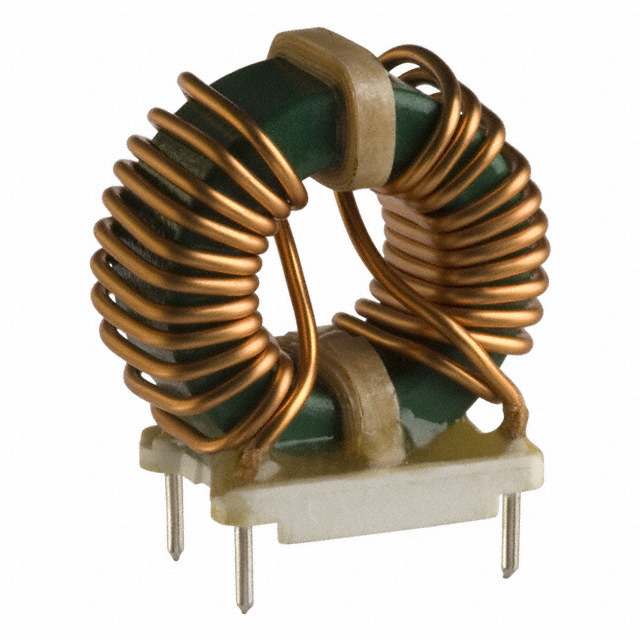

8115-RC
ActiveBourns Inc.
CMC 1.2MH 16A 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8115-RC
ActiveBourns Inc.
CMC 1.2MH 16A 2LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8115-RC |
|---|---|
| Current Rating (Max) [Max] | 16 A |
| Height (Max) [Max] [z] | 1.53 in |
| Height (Max) [Max] [z] | 38.86 mm |
| Inductance @ Frequency | 1.2 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 4 Lead |
| Package / Case | Vertical |
| Size / Dimension [x] | 38.1 mm |
| Size / Dimension [x] | 1.5 in |
| Size / Dimension [y] | 20.32 mm |
| Size / Dimension [y] | 0.8 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.77 | |
| 10 | $ 5.96 | |||
Description
General part information
8115 Series
1.2 mH 2 Line Common Mode Choke Through Hole 16A DCR 6mOhm
