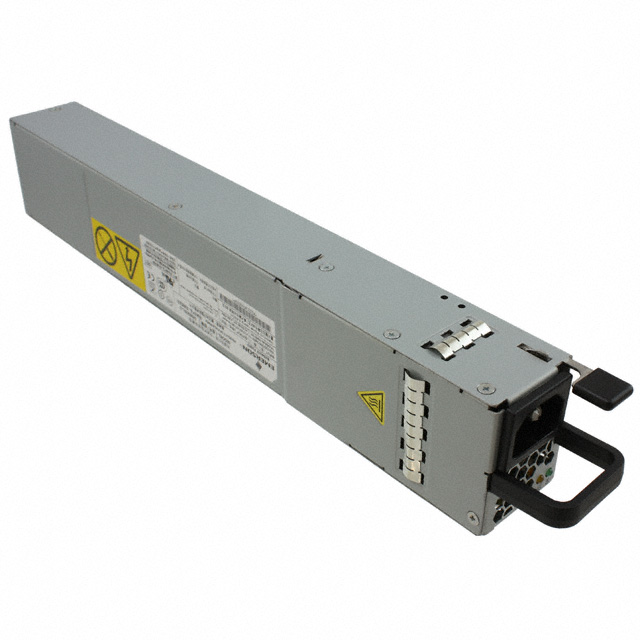

DS800SL-3-001

Active

ARTESYN / Advanced Energy

AC/DC POWER SUPPLY SINGLE-OUT 12V 66.7A 800W 24-PIN

Search across all available documentation for this part.

Active

ARTESYN / Advanced Energy

AC/DC POWER SUPPLY SINGLE-OUT 12V 66.7A 800W 24-PIN

Technical Specifications

Parameters and characteristics for this part

Specification	DS800SL-3-001

Applications	ITE (Commercial)
Approval Agency	CB
Current - Output 1	66.7 A
Efficiency	92 %
Features	I2C Interface, Hot Swappable, Load Sharing, Standby Output, Remote Sense, PFC, Universal Input
Minimum Load Required	False
Mounting Type	Rack Mount
Number of Outputs	1
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Power (Watts)	800 W
Size / Dimension [x]	322 mm
Size / Dimension [x]	12.68 "
Size / Dimension [y]	54.5 mm
Size / Dimension [y]	2.15 "
Size / Dimension [z]	40 mm
Size / Dimension [z]	1.57 "
Type	Front End
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output 1	12 V

Part	Current - Output 1	Voltage - Output 1	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Number of Outputs	Minimum Load Required	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Type	Power (Watts)	Efficiency	Mounting Type	Approval Agency	Features
ARTESYN / Advanced Energy DS800SL-3-001	66.7 A	12 V	-10 °C	50 °C	1		322 mm	54.5 mm	12.68 "	40 mm	2.15 "	1.57 "	90 VAC	264 VAC	ITE (Commercial)	Front End	800 W	92 %	Rack Mount	CB	Hot Swappable I2C Interface Load Sharing PFC Remote Sense Standby Output Universal Input

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 324.79
Digikey	Bulk	90	$ 392.06

General part information

Front End AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
