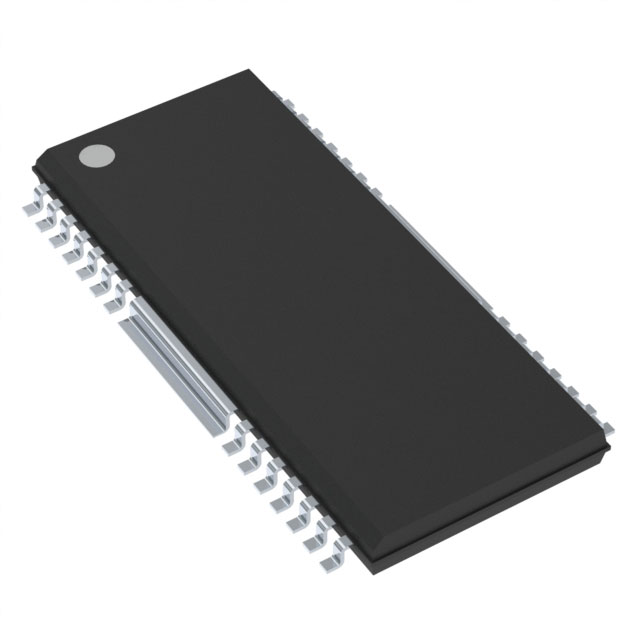

IMX102U-TL
ActivePower Integrations
IC LED DRIVER CTRLR PWM 28HSOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IMX102U-TL
ActivePower Integrations
IC LED DRIVER CTRLR PWM 28HSOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IMX102U-TL |
|---|---|
| Applications | Backlight |
| Dimming | Analog, PWM |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 2 Heat Tabs, 28-BSOP |
| Package / Case [custom] | 0.295 in |
| Package / Case [custom] | 7.5 mm |
| Supplier Device Package | 28-HSOP |
| Topology | Flyback |
| Type | DC DC Controller |
| Voltage - Output [Max] | 22 V |
| Voltage - Output [Min] | 3 V |
| Voltage - Supply (Max) [Max] | 5.25 V |
| Voltage - Supply (Min) [Min] | 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.75 | |
| 100 | $ 0.62 | |||
| Digi-Reel® | 1 | $ 0.75 | ||
| 100 | $ 0.62 | |||
| Tape & Reel (TR) | 1000 | $ 0.53 | ||
| 10000 | $ 0.45 | |||
Description
General part information
IMX102 Series
LED Driver IC 1 Output DC DC Controller Flyback Analog, PWM Dimming 28-HSOP
