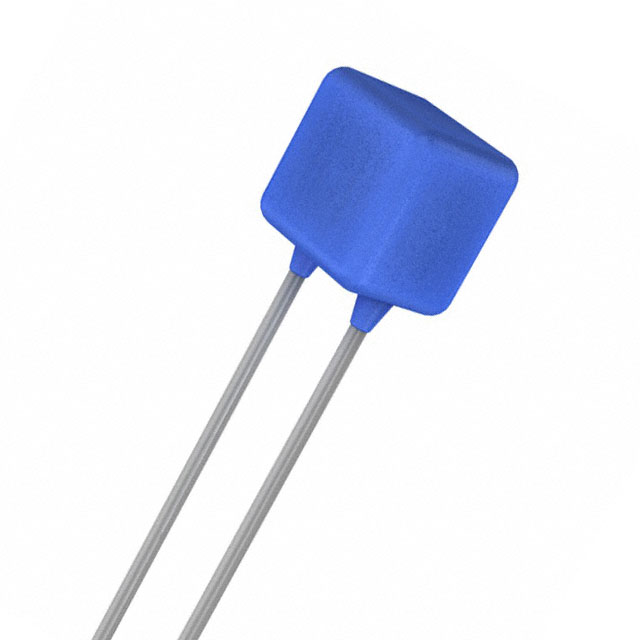

30HV21N271JCM
ActiveKEMET
CAP CER 270PF 3KV NP0 RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
30HV21N271JCM
ActiveKEMET
CAP CER 270PF 3KV NP0 RADIAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 30HV21N271JCM |
|---|---|
| Applications | SMPS Filtering |
| Capacitance | 270 pF |
| Features | High Voltage |
| Height - Seated (Max) [Max] [z] | 7.11 mm |
| Height - Seated (Max) [Max] [z] | 0.28 in |
| Lead Spacing | 5.59 mm |
| Lead Spacing | 0.22 in |
| Lead Style | Straight |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial |
| Size / Dimension [x] | 0.32 in, 8.13 mm |
| Size / Dimension [y] | 6.35 mm |
| Temperature Coefficient | NP0, C0G |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
30HV21N Series
270 pF ±5% 3000V (3kV) Ceramic Capacitor C0G, NP0 Radial
