252153

Active

Amphenol RF

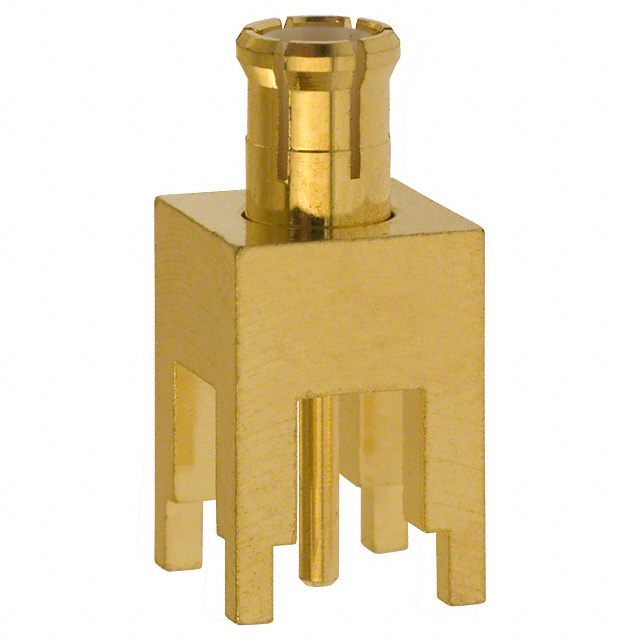

MCX STRAIGHT PCB PLUG THROUGH HOLE 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

252153

Active

Amphenol RF

MCX STRAIGHT PCB PLUG THROUGH HOLE 50 OHM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	252153

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Male Pin, Receptacle
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Insertion Loss	0.1 dB
Mating Cycles	500
Mounting Type	Through Hole
Number of Ports	1
Shield Termination	Solder
Voltage Rating	225 V

2521 Series

Part	Connector Style	Body Finish	Center Contact Plating	Body Material	Insertion Loss	Center Contact Material	Frequency - Max [Max]	Dielectric Material	Connector Type	Voltage Rating	Impedance	Housing Color	Shield Termination	Mating Cycles	Fastening Type	Contact Termination	Mounting Type	Number of Ports	Cable Group	Includes	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Cable Group [Min]	Cable Group [Max]
Amphenol RF 252153	MCX	Gold	Gold	Brass	0.1 dB	Brass	6000 MHz	Polytetrafluoroethylene (PTFE)	Male Pin Receptacle	225 V	50 Ohms	Gold	Solder	500	Snap-On	Solder	Through Hole	1
Amphenol RF 252119	MCX	Gold	Gold	Beryllium Copper	0.1 dB	Brass	6000 MHz	Polyoxymethylene (POM) Acetal Polytetrafluoroethylene (PTFE)	Male Pin Plug	225 V	50 Ohms	Gold	Crimp	500	Snap-On	Solder	Free Hanging (In-Line) Right Angle	1	188 316 Double Braid M17/152-RD316 RG-179	Connector End Cap Ferrule Insulator
Amphenol RF 252155	MCX	Gold	Gold	Beryllium Copper	0.1 dB	Brass	2.5 GHz	Polytetrafluoroethylene (PTFE)	Male Pin Receptacle	225 V	50 Ohms	Gold	Solder	500	Snap-On	Solder	Through Hole Right Angle	1			155 °C	-55 °C
Amphenol RF 252127	MCX	Gold	Gold	Beryllium Copper	0.1 dB	Brass	6000 MHz	Polytetrafluoroethylene (PTFE)	Male Pin Plug	225 V	50 Ohms	Gold	Crimp	500	Snap-On	Solder	Free Hanging (In-Line)	1	178A 178B 196 196A M17/93-RG178 RG-178	1 Connector 1 Contact 1 Ferrule 1 Spacer	155 °C	-55 °C
Amphenol RF 252184	MCX	Gold	Gold	Brass	0.1 dB	Beryllium Copper	6000 MHz	Polytetrafluoroethylene (PTFE)	Female Socket Jack	225 V	50 Ohms	Gold	Solder	500	Snap-On	Solder	Free Hanging (In-Line)	1
Amphenol RF 252167	MCX	Gold	Gold	Brass	0.1 dB	Phosphor Bronze	6000 MHz	Polytetrafluoroethylene (PTFE)	Female Socket Jack	225 V	50 Ohms	Gold	Crimp	500	Snap-On	Solder		1	178A 178B 196 196A M17/93-RG178 RG-178	1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut			Bulkhead - Front Side Nut
Amphenol RF 252107	MCX	Gold	Gold	Beryllium Copper	0.1 dB	Brass	6000 MHz	Polytetrafluoroethylene (PTFE)	Male Pin Plug	225 V	50 Ohms	Gold	Solder	500	Snap-On	Solder	Free Hanging (In-Line)	1	RG-405 Semi Rigid					0.085 in	0.086 in
Amphenol RF 252121	MCX	Gold	Gold	Beryllium Copper	0.1 dB	Brass	6000 MHz	Polytetrafluoroethylene (PTFE)	Male Pin Plug	225 V	50 Ohms	Gold	Crimp	500	Snap-On	Crimp	Free Hanging (In-Line)	1	188 316 Double Braid M17/152-RD316 RG-179	1 Connector 1 Contact 1 Ferrule
Amphenol RF 252109	MCX	Gold	Gold	Brass	0.1 dB	Brass	6000 MHz	Polyoxymethylene (POM) Acetal Polytetrafluoroethylene (PTFE)	Male Pin Plug	225 V	50 Ohms	Gold	Solder	500	Snap-On	Solder	Free Hanging (In-Line) Right Angle	1	RG-405 Semi Rigid	1 Connector 1 End Cap 1 Insulator				0.085 in	0.086 in
Amphenol RF 252163	MCX	Gold	Gold	Brass	0.1 dB	Beryllium Copper	6000 MHz	Polytetrafluoroethylene (PTFE)	Female Socket Jack	225 V	50 Ohms	Gold	Solder	500	Snap-On	Solder		1	RG-405 Semi Rigid	1 Connector 1 Contact 1 Insulator 1 Lockwasher 1 Nut			Bulkhead - Front Side Nut	0.085 in	0.086 in
