SW-R2-2B-F-1-0

Active

Adam Tech

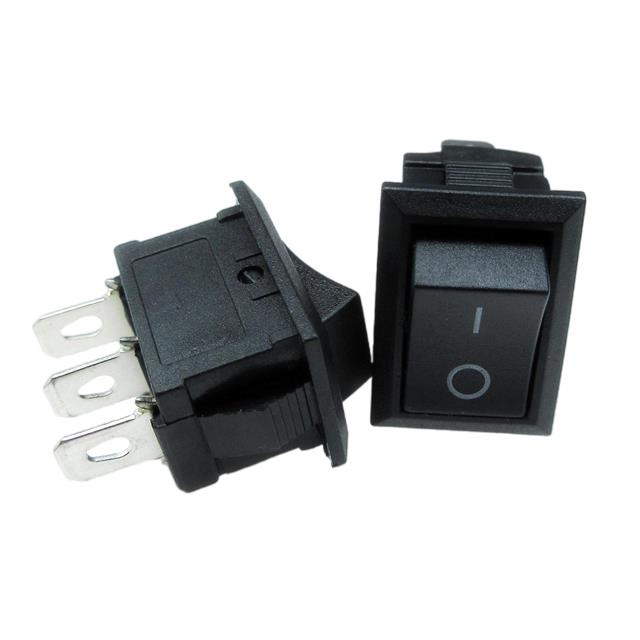

SWITCH ROCKER SPDT 10A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet WOYR2.E520713- Switches, Appliance, Special Use

SW-R2-2B-F-1-0

Active

Adam Tech

SWITCH ROCKER SPDT 10A 125V

Deep-Dive with AI

DocumentsDatasheet WOYR2.E520713- Switches, Appliance, Special Use

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SW-R2-2B-F-1-0

Actuator Marking	O -
Actuator Type	Concave (Curved)
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	10 A
Electrical Life	10000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	19.2 mm
Panel Cutout Dimensions [y]	13 mm
Switch Function	On-On
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V

SW-R2 Series

Part	Actuator Marking	Termination Style	Switch Function	Circuit	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Current Rating (Amps)	Mounting Type	Voltage Rating - AC	Color - Actuator/Cap	Actuator Type	Illumination Type, Color	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Illumination Voltage (Nominal)	Termination Style	Termination Style
Adam Tech SW-R2-2B-B-5-10	No Marking	PC Pin	On-On	SPDT	28 V	-30 ░C	85 °C	50000 Cycles	5 A	Flange Panel Mount	125 V	Black	Concave (Standard V)
Adam Tech SW-R2-1A-F-LY13-2	O -	Quick Connect - 0.187" (4.7mm)	On-Off	SPST		-25 °C	85 °C	10000 Cycles	10 A	Panel Mount Snap-In	125 V	Amber	Concave (Curved) - Illuminated	Amber LED	13 mm	19.2 mm	12 VDC
Adam Tech SW-R2-3A-F-1-6	O -	Quick Connect - 0.187" (4.7mm)	On-Off	DPST		-25 °C	85 °C	10000 Cycles	10 A	Panel Mount Snap-In	125 V	Black	Concave (Curved)		20 mm	22.2 mm
Adam Tech SW-R2-2E-F-W6-8	I O II	Quick Connect - 0.187" (4.7mm)	On-Off-On	SPDT		-25 °C	85 °C	10000 Cycles	10 A	Panel Mount Snap-In	125 V	White	Round
Adam Tech SW-R2-4E-S-R6-1	I O II	Quick Connect Solder	On-Off-On	DPDT		-25 °C	85 °C	10000 Cycles	10 A	Panel Mount Snap-In	125 V	Red	Concave (Curved)					0.11 in	2.8 mm
Adam Tech SW-R2-1A-F-G2-5W	ON OFF Vertical	Quick Connect - 0.187" (4.7mm)	On-Off	SPST		-25 °C	85 °C	10000 Cycles	10 A	Panel Mount Snap-In	125 V	Green	Round
Adam Tech SW-R2-1A-F-2-8	ON OFF Vertical	Quick Connect - 0.187" (4.7mm)	On-Off	SPST		-25 °C	85 °C	10000 Cycles	10 A	Panel Mount Snap-In	125 V	Black	Round
Adam Tech SW-R2-1A-F-W1-8	O -	Quick Connect - 0.187" (4.7mm)	On-Off	SPST		-25 °C	85 °C	10000 Cycles	10 A	Panel Mount Snap-In	125 V	White	Round
Adam Tech SW-R2-1A-F-LR23-2	ON OFF Vertical	Quick Connect - 0.187" (4.7mm)	On-Off	SPST		-25 °C	85 °C	10000 Cycles	10 A	Panel Mount Snap-In	125 V	Red	Concave (Curved) - Illuminated	LED Red	13 mm	19.2 mm	12 VDC
Adam Tech SW-R2-2B-F-1-0	O -	Quick Connect - 0.187" (4.7mm)	On-On	SPDT		-25 °C	85 °C	10000 Cycles	10 A	Panel Mount Snap-In	125 V	Black	Concave (Curved)		13 mm	19.2 mm
