74LVC1G08Z-7
ActiveIC: DIGITAL; AND; CH: 1; IN: 2; CMOS,TTL; SMD; SOT553; 1.65÷5.5VDC
Deep-Dive with AI
Search across all available documentation for this part.
74LVC1G08Z-7
ActiveIC: DIGITAL; AND; CH: 1; IN: 2; CMOS,TTL; SMD; SOT553; 1.65÷5.5VDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 74LVC1G08Z-7 |
|---|---|
| Current - Output High, Low [x] | 32 mA |
| Current - Output High, Low [y] | 32 mA |
| Current - Quiescent (Max) [Max] | 200 µA |
| Input Logic Level - High [Max] | 2 V |
| Input Logic Level - High [Min] | 1.7 V |
| Input Logic Level - Low [Max] | 0.8 V |
| Input Logic Level - Low [Min] | 0.7 V |
| Logic Type | AND Gate |
| Max Propagation Delay @ V, Max CL | 5.5 ns |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |

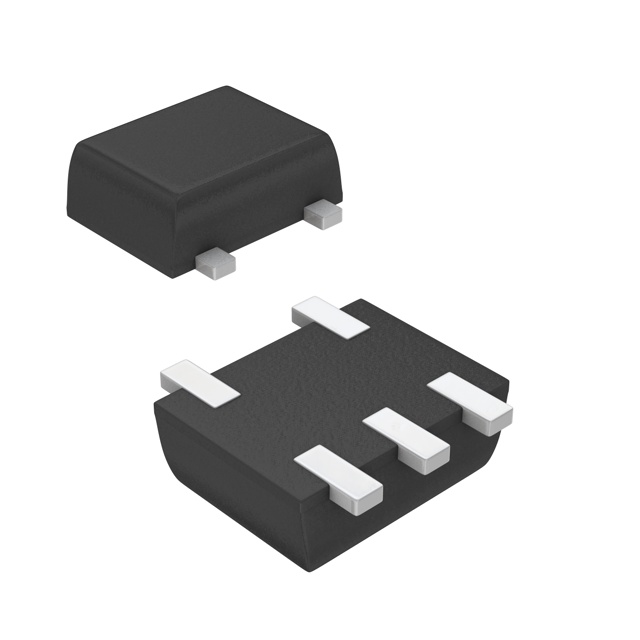

| Package / Case | SOT-553 |
| Supplier Device Package | SOT-553 |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 1.65 V |
74LVC1G08Q Series
Single 2 Input AND Gate
| Part | Max Propagation Delay @ V, Max CL | Number of Inputs | Number of Circuits | Logic Type | Operating Temperature [Min] | Operating Temperature [Max] | Input Logic Level - High [Min] | Input Logic Level - High [Max] | Voltage - Supply [Max] | Voltage - Supply [Min] | Current - Quiescent (Max) [Max] | Current - Output High, Low [y] | Current - Output High, Low [x] | Mounting Type | Package / Case | Input Logic Level - Low [Max] | Input Logic Level - Low [Min] | Supplier Device Package | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Diodes Inc | 5.5 ns | 2 | 1 | AND Gate | -40 °C | 125 °C | 1.7 V | 2 V | 5.5 V | 1.65 V | 200 µA | 32 mA | 32 mA | Surface Mount | 6-XFDFN | 0.8 V | 0.7 V | X2-DFN1410-6 | ||
Diodes Inc | 5.5 ns | 2 | 1 | AND Gate | -40 °C | 125 °C | 0.95 V | 3.4 V | 5.5 V | 1.65 V | 4 µA | 32 mA | 32 mA | Surface Mount | 5-TSSOP SC-70-5 SOT-353 | 0.8 V | 0.7 V | SOT-353 | Automotive | AEC-Q100 |
Diodes Inc | 5.5 ns | 2 | 1 | AND Gate | -40 °C | 125 °C | 1.7 V | 2 V | 5.5 V | 1.65 V | 200 µA | 32 mA | 32 mA | Surface Mount | 6-XFDFN | 0.8 V | 0.7 V | X2-DFN1010-6 | ||
Diodes Inc | 5.5 ns | 2 | 1 | AND Gate | -40 °C | 125 °C | 1.7 V | 2 V | 5.5 V | 1.65 V | 200 µA | 32 mA | 32 mA | Surface Mount | SOT-553 | 0.8 V | 0.7 V | SOT-553 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.41 | |
| 10 | $ 0.31 | |||
| 25 | $ 0.28 | |||
| 100 | $ 0.19 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.10 | |||
| Digi-Reel® | 1 | $ 0.41 | ||
| 10 | $ 0.31 | |||
| 25 | $ 0.28 | |||
| 100 | $ 0.19 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.10 | |||
| Tape & Reel (TR) | 4000 | $ 0.09 | ||
| 8000 | $ 0.09 | |||
| 12000 | $ 0.08 | |||
| 28000 | $ 0.07 | |||
| 100000 | $ 0.07 | |||
| TME | N/A | 1 | $ 0.53 | |
| 10 | $ 0.25 | |||
| 50 | $ 0.20 | |||
| 100 | $ 0.18 | |||
Description
General part information
74LVC1G08Q Series
The 74LVC1G08Q is an automotive-compliant, single 2-input positive AND gate with a standard push-pull output. The device is designed for operation with a power supply range of 1.65V to 5.5V. The inputs are tolerant to 5.5V allowing this device to be used in a mixed voltage environment. The device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output preventing damaging current backflow when the device is powered down.
