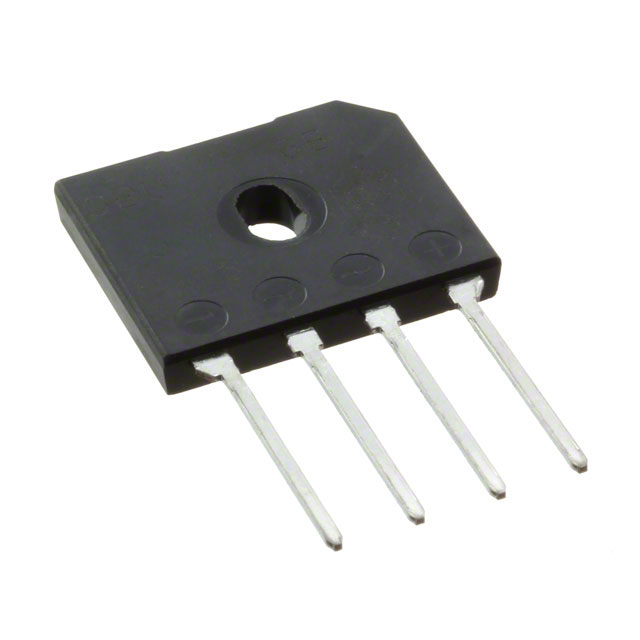

GBU6B
ActiveGeneSiC Semiconductor
RECTIFIER BRIDGE DIODE SINGLE 100V 2.8A 4-PIN CASE GBU
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GBU6B
ActiveGeneSiC Semiconductor
RECTIFIER BRIDGE DIODE SINGLE 100V 2.8A 4-PIN CASE GBU
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GBU6B |
|---|---|
| Current - Average Rectified (Io) | 6 A |
| Current - Reverse Leakage @ Vr | 5 µA |
| Diode Type | Single Phase |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 4-SIP, GBU |
| Supplier Device Package | GBU |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V |
| Voltage - Peak Reverse (Max) [Max] | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.53 | |
| 10 | $ 1.07 | |||
| 25 | $ 0.93 | |||
| 100 | $ 0.75 | |||
| 250 | $ 0.65 | |||
| 500 | $ 0.58 | |||
| 1000 | $ 0.52 | |||
| 2500 | $ 0.45 | |||
| Tube | 1 | $ 1.42 | ||
| 20 | $ 1.16 | |||
| 100 | $ 0.90 | |||
| 500 | $ 0.76 | |||
| 1000 | $ 0.62 | |||
| 2000 | $ 0.59 | |||
| 5000 | $ 0.56 | |||
| 10000 | $ 0.53 | |||
Description
General part information
GBU6 Series
Bridge Rectifier Single Phase Standard 100 V Through Hole GBU
