060-T205-01
ActiveHoneywell Sensing and Productivity Solutions T&M
SENSOR 5000PSIG 1/4"NPT .02A
Deep-Dive with AI
Search across all available documentation for this part.
060-T205-01
ActiveHoneywell Sensing and Productivity Solutions T&M
SENSOR 5000PSIG 1/4"NPT .02A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 060-T205-01 |
|---|---|
| Accuracy | 0.2 % |
| Operating Pressure | 34473.79 kPa |
| Operating Pressure | 5000 PSI |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Output [Max] | 20 mA |
| Output [Min] | 4 mA |
| Output Type | Analog Current |
| Package / Case | Cylinder, Threaded |
| Port Size [custom] | NPT |
| Port Size [custom] | Male |
| Port Size [x] | 0.25 " |
| Port Size [x] | 6.35 mm |
| Port Style | Threaded |
| Pressure Type | Gauge |
| Termination Style | Connector |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 656.25 | |
Description
General part information
060-T205 Series

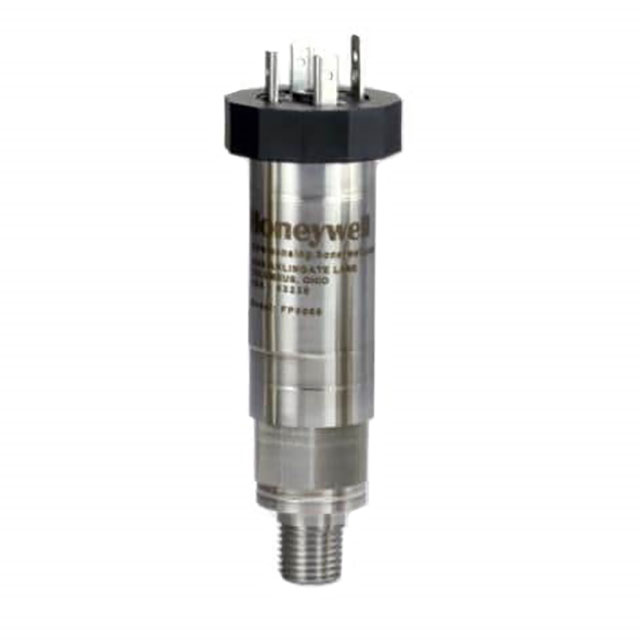

Pressure Sensor 5000PSI (34473.79kPa) Gauge Male - 1/4" (6.35mm) NPT 4 mA ~ 20 mA Cylinder, Threaded
Documents
Technical documentation and resources
No documents available
