DH-37-CV2B
ActiveHirose Electric USA, Inc.
CONN BACKSHELL 37POS 180DEG SHLD
Deep-Dive with AI
Search across all available documentation for this part.
DH-37-CV2B
ActiveHirose Electric USA, Inc.
CONN BACKSHELL 37POS 180DEG SHLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DH-37-CV2B |
|---|---|
| Accessory Type | Two Piece Backshell and Cover |
| Cable Exit | 180 ° |
| Cable Type | Round |
| Color | Black |
| Features | Mating Screw M2.3 |
| Hardware | Assembly Hardware |
| Material [custom] | Plastic, Steel |
| Material [custom] | Metal |
| Number of Positions | 37 |
| Primary Material | Metal |
| Shielding | Shielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 12.16 | |
| 10 | $ 9.34 | |||
| 25 | $ 8.44 | |||
| 40 | $ 8.02 | |||
| 80 | $ 7.45 | |||
| 230 | $ 6.68 | |||
| 440 | $ 6.27 | |||
| 945 | $ 5.82 | |||
Description
General part information
DH-37 Series

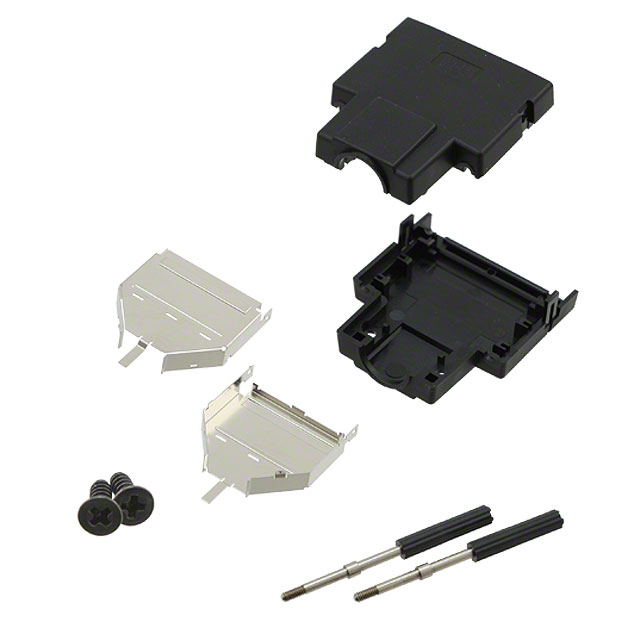

37 Position Two Piece Backshell and Cover Connector Black 180° Shielded
