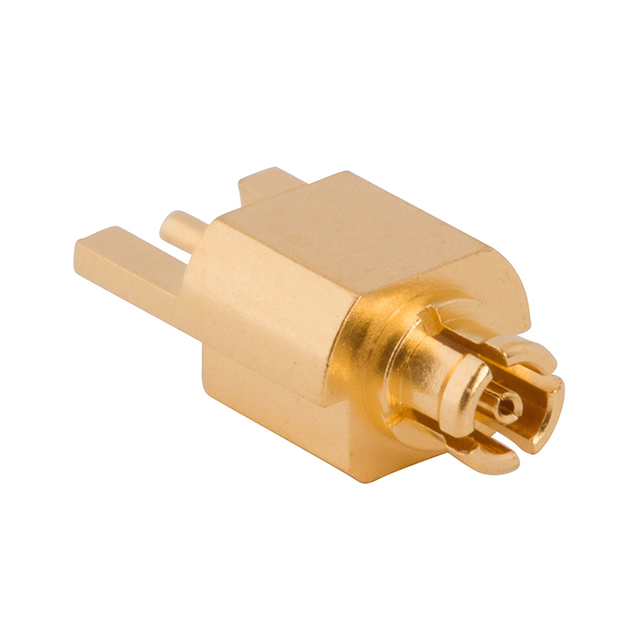

925-127P-51P

Active

Amphenol RF

CONN SMPM PLUG STR 50OHM EDGEMNT

Deep-Dive with AI

Search across all available documentation for this part.

925-127P-51P

Active

Amphenol RF

CONN SMPM PLUG STR 50OHM EDGEMNT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	925-127P-51P

Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMPM
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	40 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Cutout, Board Edge, Surface Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

925-12 Series

Part	Connector Type	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Connector Style	Mating Cycles	Number of Ports	Housing Color	Impedance	Body Finish	Frequency - Max [Max]	Cable Group	Cable Group	Mounting Type	Center Contact Plating	Fastening Type	Includes	Dielectric Material	Body Material	Shield Termination	Features	Center Gender	Conversion Type	Adapter Series	Convert To (Adapter End)	Adapter Type	Style	Convert From (Adapter End)	Cable Group [Min]	Cable Group [Max]
Amphenol RF 925-128C-51A	Female Socket Plug	Solder	-65 ░C	165 °C	Beryllium Copper	SMPM	500	1	Gold Silver	50 Ohms	Gold Nickel	6000 MHz	196	RG-178	Free Hanging (In-Line) Right Angle	Gold	Snap-On	1 Connector 1 End Cap	Polytetrafluoroethylene (PTFE)	Beryllium Copper Brass	Crimp
Amphenol RF 925-168J-51PT	Jack Male Pin	Solder	-55 °C	155 °C	Beryllium Copper	SMPM		1	Gold	50 Ohms	Gold	6000 MHz			Surface Mount Right Angle	Gold	Snap-On		Polyetheretherketone (PEEK) Polytetrafluoroethylene (PTFE)	Brass	Solder	Full Detent
Amphenol RF 925-129C-51S	Female Socket Plug	Solder	-65 ░C	165 °C	Beryllium Copper	SMPM		1	Gold Silver	50 Ohms	Gold Nickel	6000 MHz	196	RG-178	Free Hanging (In-Line)	Gold	Snap-On	1 Connector 1 Contact 1 Ferrule	Polytetrafluoroethylene (PTFE)	Beryllium Copper Brass	Crimp
Amphenol RF 925-166A-51S			-65 ░C	165 °C	Beryllium Copper		100 1000			50 Ohms	Gold	65 GHz			Free Hanging (In-Line)	Gold	Snap-On		Polytetrafluoroethylene (PTFE)	Beryllium Copper			Female to Female	Same Series	SMPM to SMPM	Female Socket SMPM Jack	Jack to Jack	Straight	Female Socket SMPM Jack
Amphenol RF 925-126J-51P	Jack Male Pin	Solder	-65 ░C	165 °C	Beryllium Copper	SMPM		1	Gold	50 Ohms	Gold	40 GHz			Board Edge Cutout Surface Mount	Gold	Snap-On		Polytetrafluoroethylene (PTFE)	Brass	Solder	Full Detent
Amphenol RF 925-127P-51P	Female Socket Plug	Solder	-65 ░C	165 °C	Beryllium Copper	SMPM		1	Gold	50 Ohms	Gold	40 GHz			Board Edge Cutout Surface Mount	Gold	Snap-On		Polytetrafluoroethylene (PTFE)	Beryllium Copper	Solder
Amphenol RF 925-165A-51S			-65 ░C	165 °C	Beryllium Copper					50 Ohms	Gold	40 GHz			Free Hanging (In-Line)	Gold	Snap-On		Polytetrafluoroethylene (PTFE)	Beryllium Copper			Female to Female	Same Series	SMPM to SMPM	Female Socket SMPM Jack	Jack to Jack	Straight	Female Socket SMPM Jack
Amphenol RF 925-118C-51S	Female Socket Plug	Solder	-65 ░C	165 °C	Beryllium Copper	SMPM		1	Gold	50 Ohms	Gold	40 GHz		RG-405 Semi Rigid	Free Hanging (In-Line)	Gold	Snap-On	Connector Contact Insulator	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Solder									0.085 in	0.086 in
Amphenol RF 925-167A-51S			-65 ░C	165 °C	Beryllium Copper		100 1000			50 Ohms	Gold	65 GHz			Free Hanging (In-Line)	Gold	Snap-On		Polytetrafluoroethylene (PTFE)	Beryllium Copper			Female to Female	Same Series	SMPM to SMPM	Female Socket SMPM Jack	Jack to Jack	Straight	Female Socket SMPM Jack
Amphenol RF 925-169J-51PT	Jack Male Pin	Solder	-65 ░C	165 °C	Beryllium Copper	SMPM		1	Gold	50 Ohms	Gold	40 GHz			Board Edge Cutout Surface Mount	Gold	Snap-On		Polytetrafluoroethylene (PTFE)	Brass	Solder	Smooth Bore

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 17.76
		10	$ 15.39
		25	$ 14.59
		50	$ 14.38
		100	$ 12.69
		300	$ 11.84
		500	$ 11.59

Description

General part information

925-12 Series

SMPM Connector Plug, Female Socket 50 Ohms Board Edge, Cutout; Surface Mount Solder
