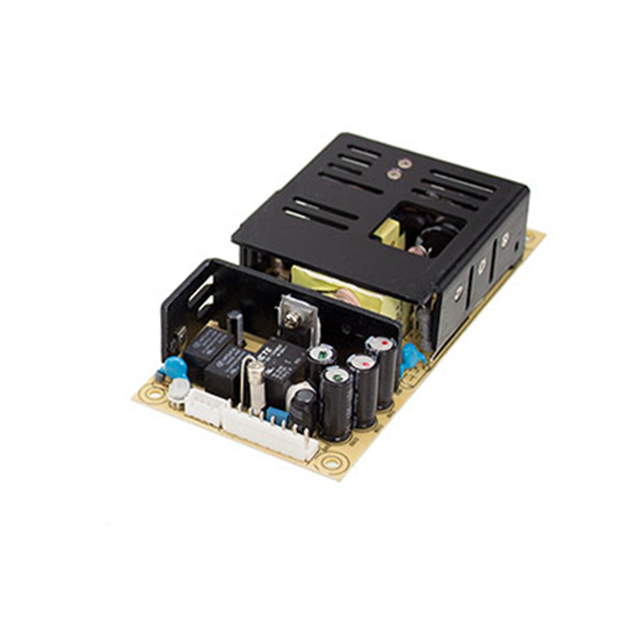

PSC-160B

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 27.6V 27.6V 160W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 27.6V 27.6V 160W

Technical Specifications

Parameters and characteristics for this part

Specification	PSC-160B

Applications	ITE (Commercial)
Approval Agency	CB, CE, cURus, TUV
Current - Output 1	3.8 A
Current - Output 2	2 A
Efficiency	90 %
Features	PFC, Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	160 W
Size / Dimension [x]	6 in
Size / Dimension [x]	152.4 mm
Size / Dimension [y]	76.2 mm
Size / Dimension [y]	3 "
Size / Dimension [z]	1.26 in
Size / Dimension [z]	32 mm
Type	Open Frame
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	127 VDC, 90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	27.6 V
Voltage - Output 2	27.6 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Features	Voltage - Isolation	Voltage - Output 1	Power (Watts)	Mounting Type	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Current - Output 1	Applications	Efficiency	Approval Agency	Current - Output 2	Type	Voltage - Output 2	Minimum Load Required
MEAN WELL USA Inc. PSC-160B	-20 °C	70 °C	1.26 in	6 in	152.4 mm	76.2 mm	3 "	32 mm	Adjustable Output PFC Universal Input	3000 V	27.6 V	160 W	Chassis Mount	90 VAC 127 VDC	264 VAC 370 VDC	2	3.8 A	ITE (Commercial)	90 %	CB CE cURus TUV	2 A	Open Frame	27.6 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 2 Output 27.6V 27.6V 90 ~ 264 VAC, 127 ~ 370 VDC Input
