345-059-524-108

Active

EDAC Inc.

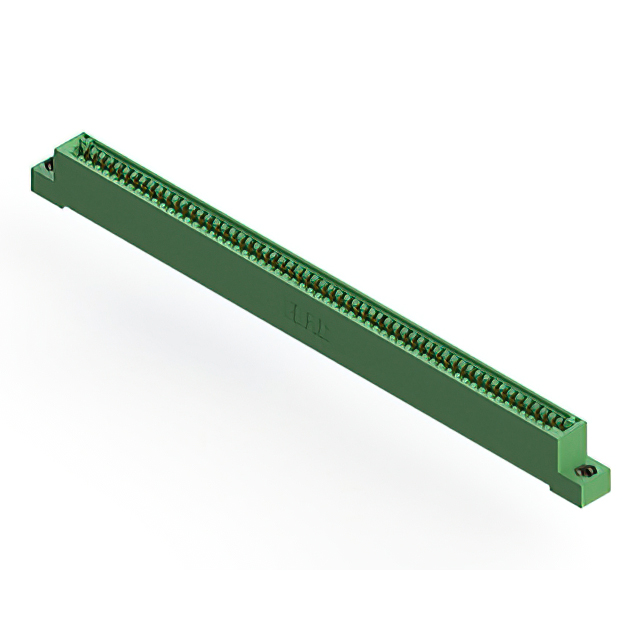

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 59 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

345-059-524-108

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 59 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	345-059-524-108

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	59
Number of Positions/Bay/Row [custom]	59
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

345-059 Series

...

Part	Read Out	Color	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Gender	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Pitch [x]	Pitch [x]	Card Type	Contact Material	Contact Finish	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Rows	Number of Positions/Bay/Row [custom]	Flange Feature	Flange Feature	Flange Feature	Termination Rows	Mounting Type	Contact Type	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 345-059-558-412	Single	Green	-40 °C	105 ░C	Solder	Female	Polyester Thermoplastic	10 Áin	0.25 Ám	59	2.54 mm	0.1 in	Non Specified - Single Edge	Copper Alloy	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	1	59	Side Mount Opening Unthreaded	3.25 mm	0.128 in	1	Through Hole Right Angle	Cantilever
EDAC Inc. 345-059-525-188	Single	Green	-40 °C	105 ░C	Solder	Female	Polyester Thermoplastic	10 Áin	0.25 Ám	59	2.54 mm	0.1 in	Non Specified - Single Edge	Copper Alloy	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	1	59	4-40 Flush Mount Threaded Insert Top Opening			1	Through Hole	Cantilever	Card Guides
EDAC Inc. 345-059-520-112	Single	Green	-40 °C	105 ░C	Solder	Female	Polyester Thermoplastic	10 Áin	0.25 Ám	59	2.54 mm	0.1 in	Non Specified - Single Edge	Copper Alloy	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	1	59	Flush Mount Side Opening Unthreaded			1	Through Hole	Cantilever		3.25 mm	0.128 "
EDAC Inc. 345-059-525-103	Single	Green	-40 °C	105 ░C	Solder	Female	Polyester Thermoplastic	10 Áin	0.25 Ám	59	2.54 mm	0.1 in	Non Specified - Single Edge	Copper Alloy	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	1	59	Floating Bobbin Flush Mount			1	Through Hole	Cantilever		2.95 mm	0.116 in
EDAC Inc. 345-059-525-604	Single	Green	-40 °C	105 ░C	Solder	Female	Polyester Thermoplastic	10 Áin	0.25 Ám	59	2.54 mm	0.1 in	Non Specified - Single Edge	Copper Alloy	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	1	59	Top Mount Opening Unthreaded			1	Through Hole	Cantilever		3.96 mm	0.156 in
EDAC Inc. 345-059-541-178	Single	Green	-40 °C	105 ░C	Wire Wrap	Female	Polyester Thermoplastic	10 Áin	0.25 Ám	59	2.54 mm	0.1 in	Non Specified - Single Edge	Copper Alloy	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	1	59	4-40 Flush Mount Threaded Insert Top Opening			1	Through Hole	Cantilever	Card Guides
EDAC Inc. 345-059-520-104	Single	Green	-40 °C	105 ░C	Solder	Female	Polyester Thermoplastic	10 Áin	0.25 Ám	59	2.54 mm	0.1 in	Non Specified - Single Edge	Copper Alloy	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	1	59	Flush Mount Top Opening Unthreaded			1	Through Hole	Cantilever		3.96 mm	0.156 in
EDAC Inc. 345-059-524-108	Single	Green	-40 °C	105 ░C	Solder	Female	Polyester Thermoplastic	10 Áin	0.25 Ám	59	2.54 mm	0.1 in	Non Specified - Single Edge	Copper Alloy	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	1	59	4-40 Flush Mount Threaded Insert Top Opening			1	Through Hole	Cantilever
EDAC Inc. 345-059-525-107	Single	Green	-40 °C	105 ░C	Solder	Female	Polyester Thermoplastic	10 Áin	0.25 Ám	59	2.54 mm	0.1 in	Non Specified - Single Edge	Copper Alloy	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	1	59	Flush Mount M3 Threaded Insert Top Opening			1	Through Hole	Cantilever
EDAC Inc. 345-059-525-478	Single	Green	-40 °C	105 ░C	Solder	Female	Polyester Thermoplastic	10 Áin	0.25 Ám	59	2.54 mm	0.1 in	Non Specified - Single Edge	Copper Alloy	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	1	59	4-40 Threaded Insert Top Mount Opening			1	Through Hole	Cantilever	Card Guides

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 20.75
Newark	Each	1	$ 23.18
		100	$ 14.59
		250	$ 12.74
		500	$ 11.62
		1000	$ 9.62

Description

General part information

345-059 Series

59 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
