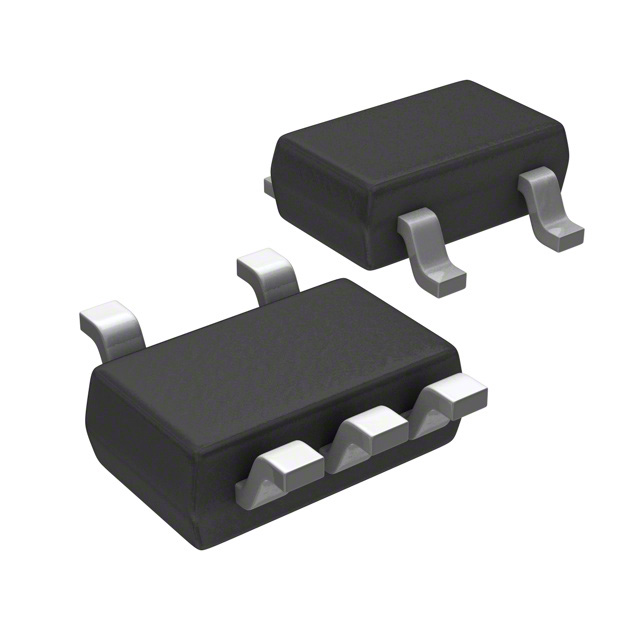

ZXRE160AH5TA

Active

Diodes Inc

V-REF ADJUSTABLE 0.2V TO 18V 15MA 5-PIN SOT-353 T/R

Search across all available documentation for this part.

Active

Diodes Inc

V-REF ADJUSTABLE 0.2V TO 18V 15MA 5-PIN SOT-353 T/R

Technical Specifications

Parameters and characteristics for this part

0.6V adjustable shunt regulator

Part	Voltage - Output (Min/Fixed)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current - Supply	Reference Type	Package / Case	Current - Output	Output Type	Supplier Device Package	Current - Cathode [diameter]	Current - Cathode [custom]	Tolerance
Diodes Inc ZXRE160AFT4-7	0.6 V	-40 °C	125 °C	Surface Mount	3 mA	Shunt	6-XFDFN Exposed Pad	15 mA	Adjustable	6-DFN1520H4	300 µA
Diodes Inc ZXRE160AH5TA	0.6 V	-40 °C	125 °C	Surface Mount		Shunt	5-TSSOP SC-70-5 SOT-353	15 mA	Adjustable	SC-70-5		1 mA
Diodes Inc ZXRE160FT4-7	0.6 V	-40 °C	125 °C	Surface Mount		Shunt	6-XFDFN Exposed Pad	15 mA	Adjustable	X2-DFN1520-6		1 mA	1 %
Diodes Inc ZXRE160AET5TA	0.6 V	-40 °C	125 °C	Surface Mount		Shunt	SOT-23-5 Thin TSOT-23-5	15 mA	Adjustable	TSOT-25		1 mA
Diodes Inc ZXRE160H5TA	0.6 V	-40 °C	125 °C	Surface Mount		Shunt	5-TSSOP SC-70-5 SOT-353	15 mA	Adjustable	SC-70-5		1 mA	1 %
