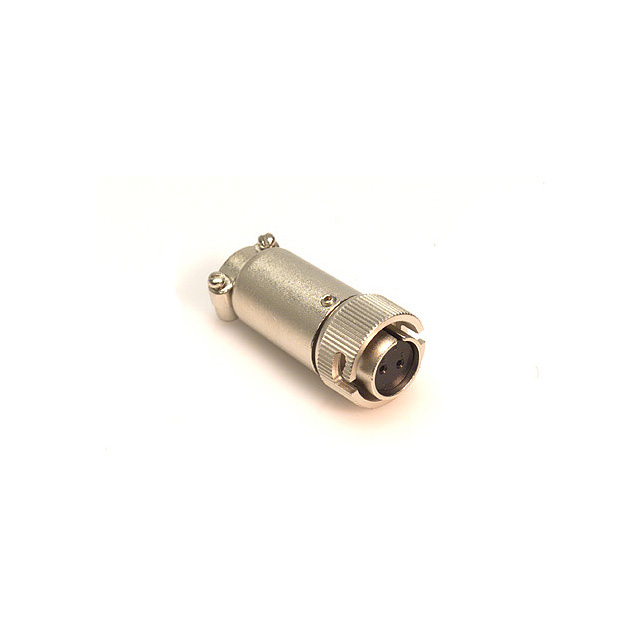

RM12BPE-2S(71)

Obsolete

Hirose Electric USA, Inc.

CONN PLUG FMALE 2P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RM12BPE-2S(71)

Obsolete

Hirose Electric USA, Inc.

CONN PLUG FMALE 2P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RM12BPE-2S(71)

Backshell Material, Plating	Nickel, Zinc Alloy
Cable Opening [Max] [custom]	8 mm
Cable Opening [Max] [custom]	0.315 in
Cable Opening [Min] [custom]	5 mm
Cable Opening [Min] [custom]	0.197 in
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Finish Thickness - Mating	196.9 µin
Contact Finish Thickness - Mating	5 µm
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Features	Cable Clamp, Coupling Nut, Backshell
Insert Material	Diallyl Phthalate (DAP)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	12
Voltage Rating	840 VDC, 600 VAC

RM12BPE Series

Part	Shell Size - Insert	Shell Finish	Shell Material	Contact Material	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Fastening Type	Insert Material	Material Flammability Rating	Number of Positions	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Color	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Voltage Rating	Backshell Material, Plating	Mounting Type	Contact Finish - Mating	Primary Material	Connector Type	Shielding	Termination
Hirose Electric USA, Inc. RM12BPE-2S(71)	12	Nickel	Zinc Alloy	Copper Alloy	5 A	196.9 µin	5 µm	Backshell Cable Clamp Coupling Nut	Bayonet Lock	Diallyl Phthalate (DAP)	UL94 V-0	2	Keyed	-25 °C	85 °C	Silver	5 mm	0.197 in	8 mm	0.315 in	600 VAC 840 VDC	Nickel Zinc Alloy	Free Hanging (In-Line)	Silver	Metal	Female Sockets Plug
Hirose Electric USA, Inc. RM12BPE-6S(81)	12			Copper Alloy					Bayonet Lock	Polyphenylene Sulfide (PPS)		6	Keyed	-25 °C	85 °C		5 mm	0.197 in	8 mm	0.315 in			Free Hanging (In-Line)	Silver	Metal	Female Sockets Plug	Unshielded	Solder
Hirose Electric USA, Inc. RM12BPE-7S	12				5 A				Bayonet Lock			7	Keyed	-25 °C	85 °C						350 VAC 490 VDC		Free Hanging (In-Line)			Female Sockets Plug
Hirose Electric USA, Inc. RM12BPE-3S	12				5 A				Bayonet Lock				Keyed	-25 °C	85 °C						500 VAC 700 VDC		Free Hanging (In-Line)			Female Sockets Plug
Hirose Electric USA, Inc. RM12BPE-4S(71)	12	Nickel	Zinc Alloy	Copper Alloy	5 A	196.9 µin	5 µm	Backshell Cable Clamp Coupling Nut	Bayonet Lock	Diallyl Phthalate (DAP)	UL94 V-0	4	Keyed	-25 °C	85 °C	Silver	5 mm	0.197 in	8 mm	0.315 in	500 VAC 700 VDC	Nickel Zinc Alloy	Free Hanging (In-Line)	Silver	Metal	Female Sockets Plug
Hirose Electric USA, Inc. RM12BPE-4S(81)	12	Nickel	Zinc Alloy	Copper Alloy	5 A			Backshell Cable Clamp Coupling Nut	Bayonet Lock	Diallyl Phthalate (DAP)	UL94 V-0	4	Keyed	-25 °C	85 °C	Silver	5 mm	0.197 in	8 mm	0.315 in	500 VAC 700 VDC		Free Hanging (In-Line)	Silver	Metal	Female Sockets Plug	Unshielded
Hirose Electric USA, Inc. RM12BPE-5S	12				5 A				Bayonet Lock				Keyed	-25 °C	85 °C						350 VAC 490 VDC		Free Hanging (In-Line)			Female Sockets Plug
Hirose Electric USA, Inc. RM12BPE-3S(71)	12	Nickel	Zinc Alloy	Copper Alloy	5 A	196.9 µin	5 µm	Backshell Cable Clamp Coupling Nut	Bayonet Lock	Diallyl Phthalate (DAP)	UL94 V-0		Keyed	-25 °C	85 °C	Silver	5 mm	0.197 in	8 mm	0.315 in	500 VAC 700 VDC	Nickel Zinc Alloy	Free Hanging (In-Line)	Silver	Metal	Female Sockets Plug
Hirose Electric USA, Inc. RM12BPE-3S(81)	12	Nickel	Zinc Alloy	Copper Alloy	5 A			Backshell Cable Clamp Coupling Nut	Bayonet Lock	Diallyl Phthalate (DAP)	UL94 V-0		Keyed	-25 °C	85 °C	Silver	5 mm	0.197 in	8 mm	0.315 in	500 VAC 700 VDC		Free Hanging (In-Line)	Silver	Metal	Female Sockets Plug	Unshielded
Hirose Electric USA, Inc. RM12BPE-2PH(81)	12	Nickel	Zinc Alloy	Copper Alloy	5 A			Backshell Cable Clamp Coupling Nut	Bayonet Lock	Diallyl Phthalate (DAP)	UL94 V-0	2	Keyed	-25 °C	85 °C	Silver	5 mm	0.197 in	8 mm	0.315 in	600 VAC 840 VDC		Free Hanging (In-Line)	Silver	Metal	Male Pins Plug	Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

RM12BPE Series

2 Position Circular Connector Plug, Female Sockets Solder Cup
