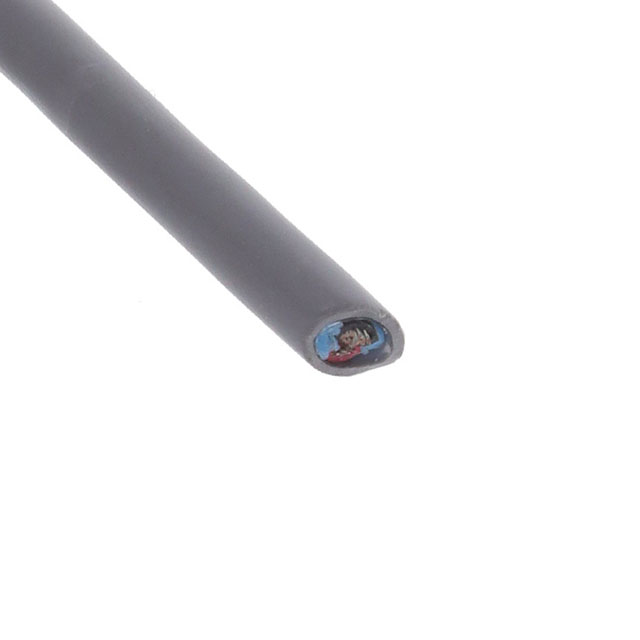

1131C SL001

Active

ALPHA WIRE

CABLE 2COND 18AWG SLATE

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 18AWG SLATE

Technical Specifications

Parameters and characteristics for this part

Specification	1131C SL001

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.225 "
Jacket (Insulation) Diameter [diameter]	5.72 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	300 V
Wire Gauge	18 AWG

Part	Usage	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Voltage	Wire Gauge	Conductor Insulation	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Conductor Material	Length	Length
ALPHA WIRE 1131C SL002	Communication Control	Poly-Vinyl Chloride (PVC)	16	30 AWG	Multi-Conductor	-20 C	80 C	500 '	152.4 m	300 V	18 AWG	Poly-Vinyl Chloride (PVC)	2	0.225 "	5.72 mm	Slate	Copper Tinned
ALPHA WIRE 1131C SL005	Communication Control	Poly-Vinyl Chloride (PVC)	16	30 AWG	Multi-Conductor	-20 C	80 C	100 ft	30.5 m	300 V	18 AWG	Poly-Vinyl Chloride (PVC)	2	0.225 "	5.72 mm	Slate	Copper Tinned
ALPHA WIRE 1131C SL001	Communication Control	Poly-Vinyl Chloride (PVC)	16	30 AWG	Multi-Conductor	-20 C	80 C			300 V	18 AWG	Poly-Vinyl Chloride (PVC)	2	0.225 "	5.72 mm	Slate	Copper Tinned	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.09

General part information

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Slate 18 AWG 1000.0' (304.8m)
