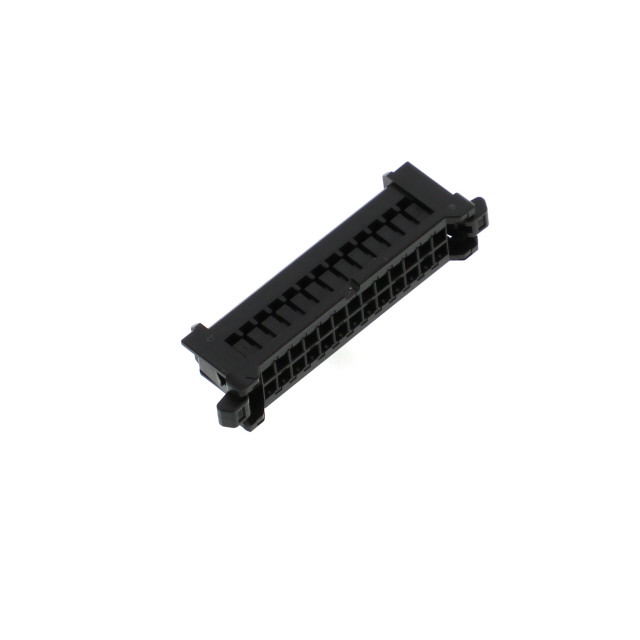

DF51-26DS-2C

Active

Hirose Electric USA, Inc.

[SIGNALBEE ] 2MM PITCH, POSITIVE LOCK WIRE-TO-BOARD CONNECTOR (UL,C-UL LISTED)

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF51-26DS-2C

Active

Hirose Electric USA, Inc.

[SIGNALBEE ] 2MM PITCH, POSITIVE LOCK WIRE-TO-BOARD CONNECTOR (UL,C-UL LISTED)

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF51-26DS-2C

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Detent Lock
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	26
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in

DF51 Series

Part	Fastening Type	Note	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Insulation Material	Contact Type	Connector Type	Contact Termination	Pitch [x]	Pitch [x]	Color	Number of Positions	Row Spacing	Row Spacing	Contact Shape	Style	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Features	Insulation Color	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Height	Insulation Height	Current Rating (Amps)	Material Flammability Rating	Voltage Rating	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Current Rating (Amps)	Contact Finish - Mating
Hirose Electric USA, Inc. DF51-5EP-2C	Detent Lock	Contacts Not Included	Panel Mount Snap-In	105 ░C	-55 °C	1	Polybutylene Terephthalate (PBT) Glass Filled	Male Pin	Plug	Crimp	0.079 in	2 mm	Black
Hirose Electric USA, Inc. DF51-30DEP-2C	Detent Lock	Contacts Not Included	Panel Mount Snap-In	105 ░C	-55 °C	2	Polybutylene Terephthalate (PBT) Glass Filled	Male Pin	Plug	Crimp	0.079 in	2 mm	Black	30	2 mm	0.079 in
Hirose Electric USA, Inc. DF51-10DS-2C	Detent Lock	Contacts Not Included	Free Hanging (In-Line)	105 ░C	-55 °C	2	Polybutylene Terephthalate (PBT) Glass Filled	Female Socket	Receptacle	Crimp	0.079 in	2 mm	Black	10	2 mm	0.079 in
Hirose Electric USA, Inc. DF51-4DS-2C	Detent Lock	Contacts Not Included	Free Hanging (In-Line)	105 ░C	-55 °C	2	Polybutylene Terephthalate (PBT) Glass Filled	Female Socket	Receptacle	Crimp	0.079 in	2 mm	Black	4	2 mm	0.079 in
Hirose Electric USA, Inc. DF51-4DP-2DS(20)	Detent Lock		Through Hole Right Angle	105 ░C	-55 °C	2	Polybutylene Terephthalate (PBT)	Male Pin	Header					4			Square	Board to Cable/Wire	0.079 in	2 mm	Brass	1 çm	39.4 çin	Solder	Board Guide	Black	Tin	0.118 in	3 mm	0.079 in	2 mm	7.3 mm	0.287 in	Varies by Wire Gauge	UL94 V-0	250 VAC	All	1 µm	39.4 µin	Shrouded - 4 Wall
Hirose Electric USA, Inc. DF51-3P-2DS(50)	Detent Lock		Through Hole Right Angle	105 ░C	-55 °C	1	Polybutylene Terephthalate (PBT)	Male Pin	Header								Square	Board to Cable/Wire	0.079 in	2 mm	Brass	0.1 Ám	3.94 Áin	Solder	Board Guide	Black	Gold	0.118 in	3 mm	0.079 in	2 mm	4.5 mm	0.177 in		UL94 V-0	250 VAC	All	0.1 µm	3.94 µin	Shrouded - 4 Wall	2 A	Gold
Hirose Electric USA, Inc. DF51-28DS-2C	Detent Lock	Contacts Not Included	Free Hanging (In-Line)	105 ░C	-55 °C	2	Polybutylene Terephthalate (PBT) Glass Filled	Female Socket	Receptacle	Crimp	0.079 in	2 mm	Black	28	2 mm	0.079 in
Hirose Electric USA, Inc. DF51-28DEP-2C	Detent Lock	Contacts Not Included	Panel Mount Snap-In	105 ░C	-55 °C	2	Polybutylene Terephthalate (PBT) Glass Filled	Male Pin	Plug	Crimp	0.079 in	2 mm	Black	28	2 mm	0.079 in
Hirose Electric USA, Inc. DF51-18DEP-2C	Detent Lock	Contacts Not Included	Panel Mount Snap-In	105 ░C	-55 °C	2	Polybutylene Terephthalate (PBT) Glass Filled	Male Pin	Plug	Crimp	0.079 in	2 mm	Black	18	2 mm	0.079 in
Hirose Electric USA, Inc. DF51-26DS-2C	Detent Lock	Contacts Not Included	Free Hanging (In-Line)	105 ░C	-55 °C	2	Polybutylene Terephthalate (PBT) Glass Filled	Female Socket	Receptacle	Crimp	0.079 in	2 mm	Black	26	2 mm	0.079 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.41
		10	$ 0.31
		25	$ 0.28
		50	$ 0.26
		100	$ 0.24
		250	$ 0.21
		500	$ 0.20
		1000	$ 0.18
		2500	$ 0.17
Newark	Each	1	$ 0.23
		10000	$ 0.20

Description

General part information

DF51 Series

26 Rectangular Connectors - Housings Receptacle Black 0.079" (2.00mm)
