C01620I0051042

Active

Amphenol Tuchel Industrial

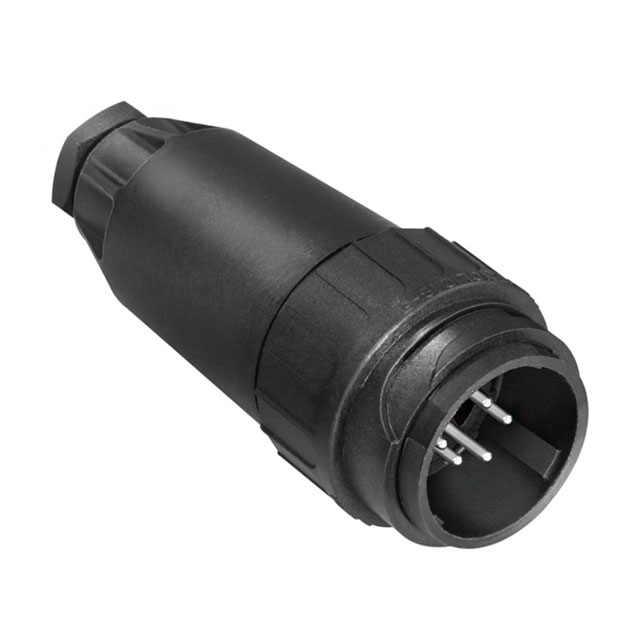

CONN PLUG MALE 6POS SILVER SCREW

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG MALE 6POS SILVER SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	C01620I0051042

Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Current Rating (Amps)	16 A
Fastening Type	Bayonet Lock
Features	Strain Relief
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	2
Termination	Screw
Voltage Rating	400 V

Part	Contact Finish - Mating	Current Rating (Amps)	Shell Material	Termination	Fastening Type	Ingress Protection	Features	Orientation	Mounting Type	Voltage Rating	Connector Type	Primary Material	Shell Size - Insert	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol Tuchel Industrial C01620I0051042	Silver	16 A	Polyamide (PA66) Nylon 6/6	Screw	Bayonet Lock	IP65 - Dust Tight Water Resistant	Strain Relief	Keyed	Free Hanging (In-Line)	400 V	Male Pins Plug	Plastic	2	6	100 °C	-40 °C
Amphenol Tuchel Industrial C01620I0051032	Silver	16 A	Polyamide (PA66) Nylon 6/6	Screw	Bayonet Lock	IP65 - Dust Tight Water Resistant	Strain Relief	Keyed	Free Hanging (In-Line)	400 V	Male Pins Plug	Plastic	2	6	100 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 (5 + PE) Position Circular Connector Plug, Male Pins Screw
