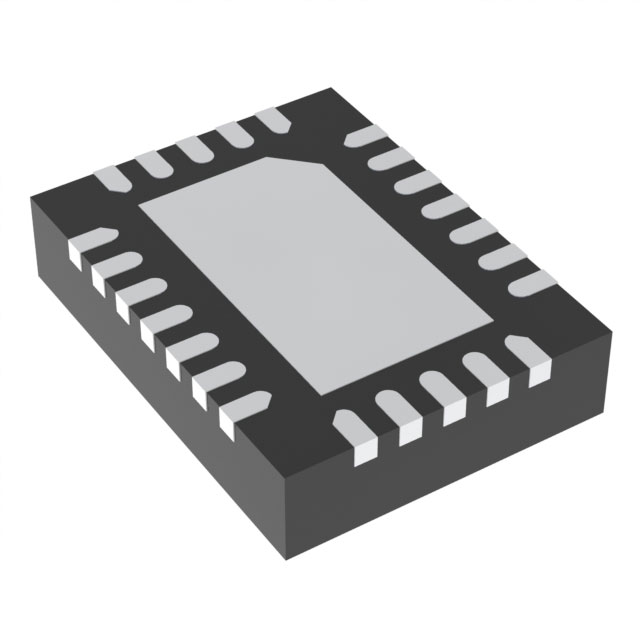

MP6543HGL-A-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
22V, 2A, THREE-PHASE POWER STAGE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MP6543HGL-A-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
22V, 2A, THREE-PHASE POWER STAGE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MP6543HGL-A-Z |
|---|---|
| Applications | Brushless DC (BLDC) |
| Current - Output | 2 A |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | PWM |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Motor Type - Stepper | Multiphase |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Half Bridge (3) |
| Package / Case | 24-VFQFN Exposed Pad |
| Supplier Device Package | 24-QFN (3x4) |
| Technology | NMOS |
| Voltage - Supply [Max] | 22 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.75 | |
| 10 | $ 2.05 | |||
| 25 | $ 1.88 | |||
| 100 | $ 1.68 | |||
| 250 | $ 1.59 | |||
| 500 | $ 1.54 | |||
| 1000 | $ 1.49 | |||
| 2500 | $ 1.44 | |||
| Tape & Reel (TR) | 5000 | $ 1.31 | ||
Description
General part information
MP6543 Series
Multiphase Motor Driver NMOS PWM 24-QFN (3x4)
