15GN03MA-TL-E

Active

ON Semiconductor

RF TRANSISTOR, NPN SINGLE, 10 V, 70 MA, FT = 1.5 GHZ

Search across all available documentation for this part.

Active

ON Semiconductor

RF TRANSISTOR, NPN SINGLE, 10 V, 70 MA, FT = 1.5 GHZ

Technical Specifications

Parameters and characteristics for this part

Specification	15GN03MA-TL-E

Current - Collector (Ic) (Max) [Max]	70 mA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	100
Frequency - Transition	1.5 GHz
Gain	13 dB
Mounting Type	Surface Mount
Noise Figure (dB Typ @ f)	1.6 dB
Operating Temperature	150 °C

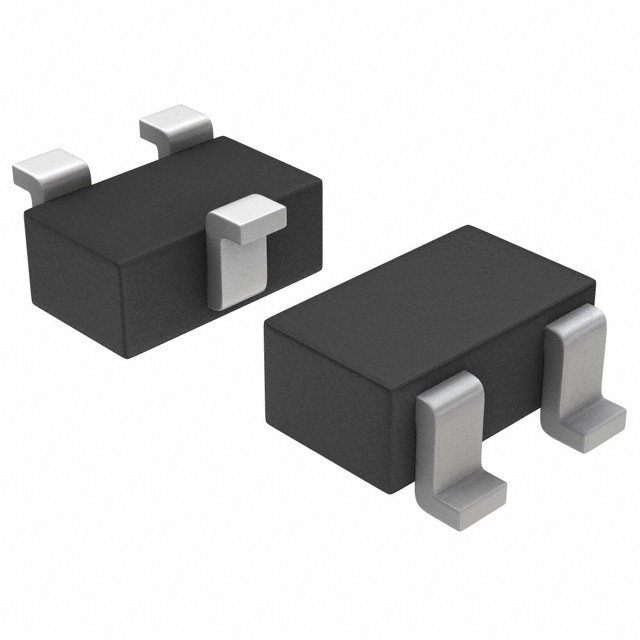

Package / Case	SC-70, SOT-323
Power - Max [Max]	400 mW
Supplier Device Package	3-MCP
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max) [Max]	10 V

RF Transistor, NPN Single, 10 V, 70 mA, fT = 1.5 GHz

Part	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature	Supplier Device Package	Frequency - Transition	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Noise Figure (dB Typ @ f)	Mounting Type	Current - Collector (Ic) (Max) [Max]	Package / Case	Transistor Type	Gain
ON Semiconductor 15GN03MA-TL-E	400 mW	10 V	150 °C	3-MCP	1.5 GHz	100	1.6 dB	Surface Mount	70 mA	SC-70 SOT-323	NPN	13 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15GN03MA is an RF Transistor, 10 V, 70 mA, fT= 1.5 GHz, NPN Single for VHF High-frequency Amplifier Applications.
