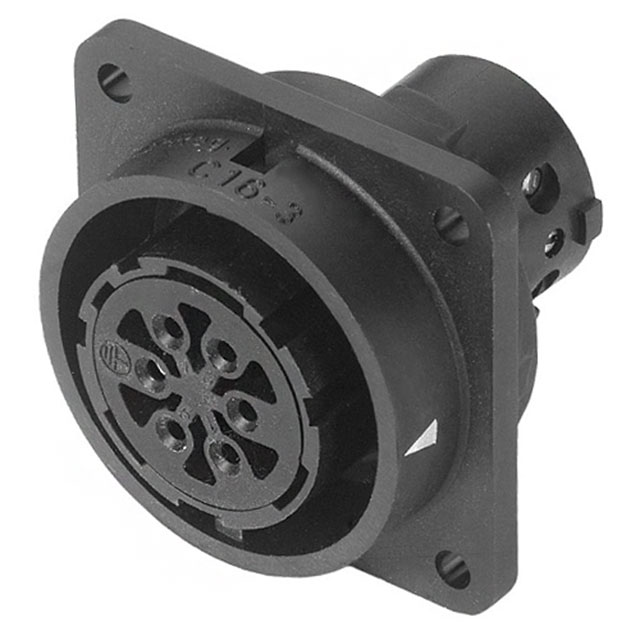

C01620G0051002

Active

Amphenol Tuchel Industrial

CONN RCPT FMALE 6P SILVER SCREW

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN RCPT FMALE 6P SILVER SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	C01620G0051002

Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Current Rating (Amps)	16 A
Fastening Type	Bayonet Lock
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Feature	Flange
Number of Positions	6
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	2
Termination	Screw
Voltage Rating	400 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Shell Material	Number of Positions	Fastening Type	Contact Finish - Mating	Mounting Feature	Termination	Connector Type	Primary Material	Shell Size - Insert	Orientation	Current Rating (Amps)	Voltage Rating
Amphenol Tuchel Industrial C01620G0051002	100 °C	-40 °C	IP65 - Dust Tight Water Resistant	Polyamide (PA66) Nylon 6/6	6	Bayonet Lock	Silver	Flange	Screw	Receptacle Female Sockets	Plastic	2	Keyed	16 A	400 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 (5 + PE) Position Circular Connector Receptacle, Female Sockets Screw
