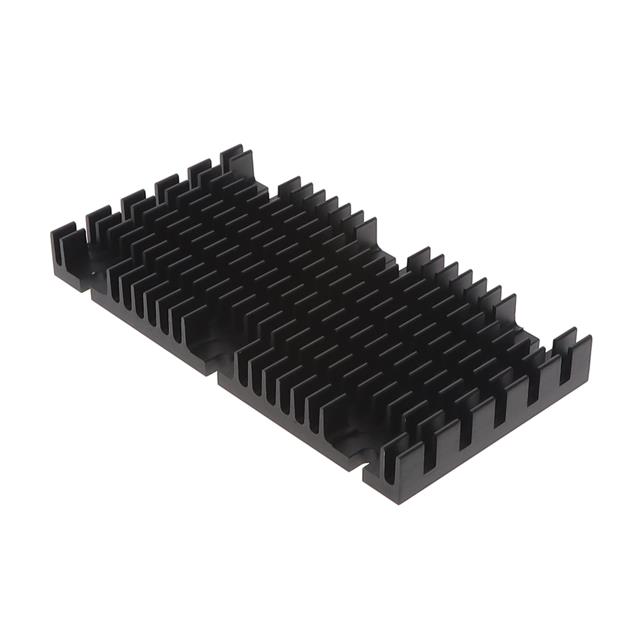

559-50AB
ActiveWakefield-Vette
HEATSINK DC/DC FULL BRICK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
559-50AB
ActiveWakefield-Vette
HEATSINK DC/DC FULL BRICK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 559-50AB |
|---|---|
| Attachment Method | Press Fit |
| Fin Height [z] | 12.7 mm |
| Fin Height [z] | 0.5 in |
| Length | 60.96 mm |
| Length [x] | 2.4 in |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Package Cooled | DC/DC Converter |
| Power Dissipation @ Temperature Rise | 10 W |
| Shape | Rectangular, Fins |
| Thermal Resistance @ Forced Air Flow | 2.2 °C/W |
| Type | Top Mount |
| Width [y] | 4.6 in |
| Width [y] | 116.84 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.58 | |
| 10 | $ 11.13 | |||
| 25 | $ 10.60 | |||
| 64 | $ 10.08 | |||
| 128 | $ 9.72 | |||
| 256 | $ 9.37 | |||
| 512 | $ 9.03 | |||
| 1024 | $ 8.70 | |||
Description
General part information
559-50 Series
Heat Sink DC/DC Converter Aluminum 10.0W @ 40°C Top Mount
