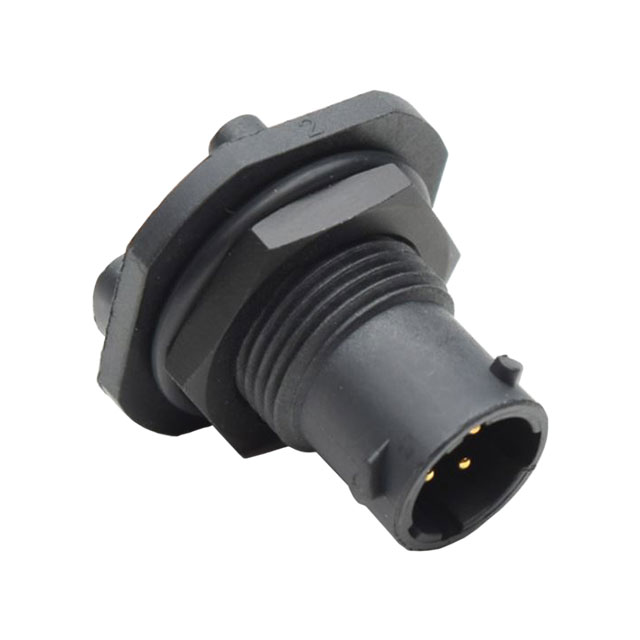

RTS78N4P

Active

Amphenol Sine Systems Corp

CONN RCPT MALE 4P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN RCPT MALE 4P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	RTS78N4P

Applications	Instrumentation, Automation, Transportation, Marine, Telecom, Industrial
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	7 A
Fastening Type	Bayonet Lock
Features	Board Guide
Ingress Protection	IP69K, IP67
Insert Material	Chloroprene Rubber (CR)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Primary Material	Plastic
Shell Size - Insert	8-4
Shielding	Unshielded
Voltage Rating	250 VAC

Part	Fastening Type	Color	Primary Material	Applications	Voltage Rating	Contact Material	Contact Finish - Mating	Ingress Protection	Mounting Feature	Current Rating (Amps)	Material Flammability Rating	Shell Size - Insert	Features	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Orientation	Number of Positions	Connector Type	Insert Material	Includes	Housing Color	Contact Shape	Contact Size	Type	Note	Contact Type
Amphenol Sine Systems Corp RTS78N4S	Bayonet Lock	Black	Plastic	Automation Industrial Instrumentation Marine Telecom Transportation	250 VAC	Copper Alloy	Gold	IP67 IP69K	Bulkhead - Front Side Nut	7 A	UL94 V-0	8-4	Board Guide	-40 °C	105 ░C	Unshielded	N	4	Receptacle Female Sockets	Chloroprene Rubber (CR)
Amphenol Sine Systems Corp RTS78N4P	Bayonet Lock	Black	Plastic	Automation Industrial Instrumentation Marine Telecom Transportation	250 VAC	Copper Alloy	Gold	IP67 IP69K	Bulkhead - Front Side Nut	7 A	UL94 V-0	8-4	Board Guide	-40 °C	105 ░C	Unshielded	N	4	Male Pins Receptacle	Chloroprene Rubber (CR)
Amphenol Sine Systems Corp RTS78N3S	Bayonet Lock							IP67 IP69K	Bulkhead - Front Side Nut		UL94 V-0	8-3		-40 °C	125 °C	Unshielded	N		Receptacle Housing	Thermoplastic	1 Connector 1 Gasket 1 Nut 1 O-Ring	Black	Circular	20	For Female Sockets	Contacts Not Included	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Male Pins Solder Cup
