31-71033
NRNDAmphenol RF

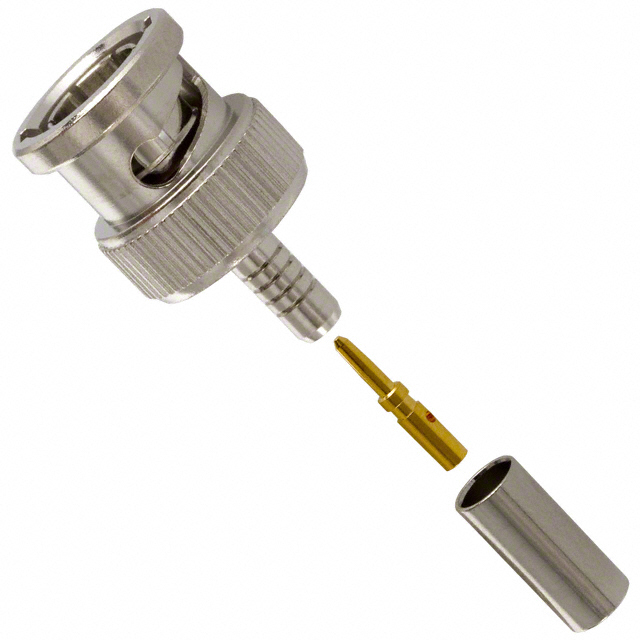

CONN BNC PLUG STR 75 OHM CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
31-71033
NRNDAmphenol RF
CONN BNC PLUG STR 75 OHM CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 31-71033 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | AT&T 735, 735A, Belden 735A1 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Silver |
| Impedance | 75 Ohms |
| Includes | 1 Ferrule, 1 Contact, 1 Connector |
| Insertion Loss | 0.2 dB |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
31-710 Series
| Part | Center Contact Material | Connector Style | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Body Material | Voltage Rating | Cable Group | Housing Color | Shield Termination | Connector Type | Mating Cycles | Contact Termination | Includes | Number of Ports | Impedance | Insertion Loss | Fastening Type | Dielectric Material | Frequency - Max [Max] | Body Finish | Center Contact Plating | Mounting Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | Brass | BNC | -65 ░C | 165 °C | Free Hanging (In-Line) | Brass | 500 V | 140 210 59B 62 8263 8279 9209 Belden 8241 RG-59 | Silver | Crimp | Male Pin Plug | 500 | Crimp | 1 Bushing 1 Connector 1 Contact 1 Ferrule | 1 | 75 Ohms | 0.2 dB | Bayonet Lock | Polyoxymethylene (POM) Acetal | 2 GHz | Nickel | Gold | ||
Amphenol RF | Brass | BNC | -65 ░C | 165 °C | Free Hanging (In-Line) | Brass | 500 V | 179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179 | Silver | Crimp | Male Pin Plug | 500 | Crimp | 1 Connector 1 Contact 1 Ferrule 1 Sleeve | 1 | 75 Ohms | 0.2 dB | Bayonet Lock | Polytetrafluoroethylene (PTFE) | 2 GHz | Nickel | Gold | ||
Amphenol RF | Brass | BNC | -65 ░C | 165 °C | Free Hanging (In-Line) | Brass | 500 V | RG-59 Double Braid Belden 9231 | Silver | Crimp | Male Pin Plug | 500 | Crimp | 1 Connector 1 Contact 1 Ferrule | 1 | 75 Ohms | 0.2 dB | Bayonet Lock | Polytetrafluoroethylene (PTFE) | 4 GHz | Nickel | Gold | ||
Amphenol RF | Phosphor Bronze | BNC | -55 °C | 85 °C | Panel Mount Right Angle Through Hole | Zinc Die Cast | 500 V | Silver | Solder | Female Socket Jack | 500 | Solder | 1 | 75 Ohms | 0.2 dB | Bayonet Lock | Polypropylene (PP) | 1 GHz | Nickel | Gold | Bulkhead - Front Side Nut | |||
Amphenol RF | Brass | BNC | -65 ░C | 165 °C | Free Hanging (In-Line) | Brass | 500 V | 735A AT&T 735 Belden 735A1 | Silver | Crimp | Male Pin Plug | 500 | Crimp | 1 Connector 1 Contact 1 Ferrule | 1 | 75 Ohms | 0.2 dB | Bayonet Lock | Polytetrafluoroethylene (PTFE) | 4 GHz | Nickel | Gold | ||
Amphenol RF | Phosphor Bronze | BNC | -55 °C | 85 °C | Panel Mount Right Angle Through Hole | Zinc Die Cast | 500 V | Silver White | Solder | Female Socket Jack | 500 | Solder | 1 | 75 Ohms | 0.2 dB | Bayonet Lock | Polypropylene (PP) | 1 GHz | Nickel | Gold | Bulkhead - Front Side Nut | Board Lock Isolated |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.28 | |
| 10 | $ 7.49 | |||
| 25 | $ 7.07 | |||
| 50 | $ 6.90 | |||
| 100 | $ 6.55 | |||
| 250 | $ 5.86 | |||
| 500 | $ 5.52 | |||
| 1000 | $ 4.83 | |||
Description
General part information
31-710 Series
BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp
