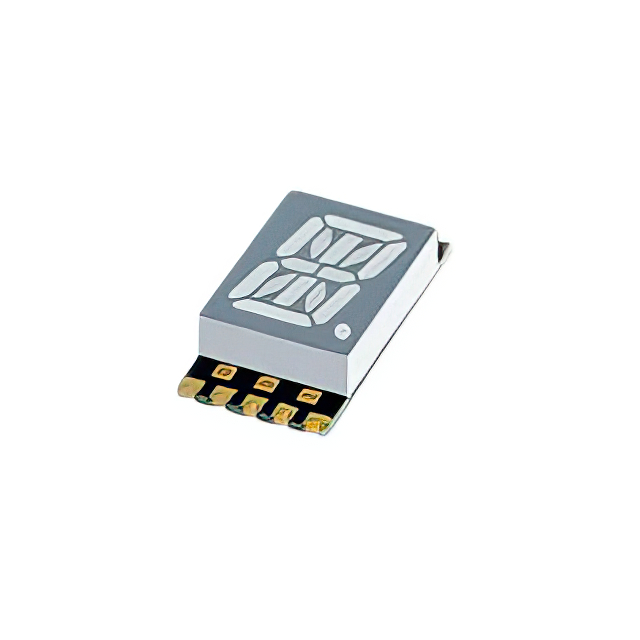

ACPSA04-41SURKWA

Active

Kingbright

DISPLAY 14SEG 0.4" SGL RED 16SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ACPSA04-41SURKWA

Color	Red
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	10.16 mm
Digit/Alpha Size [custom]	0.4 in
Display Type	14-Segment, Alphanumeric
Millicandela Rating	36 mcd
Number of Characters [custom]	1
Package / Case	16-SMD, No Lead
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	0.148 "
Size / Dimension [x]	3.75 mm
Size / Dimension [y]	9.3 mm
Size / Dimension [y]	0.366 "
Size / Dimension [z]	0.512 "
Size / Dimension [z]	13 mm
Voltage - Forward (Vf) (Typ)	1.95 V
Wavelength - Peak	650 nm

ACPSA04 Series

Part	Voltage - Forward (Vf) (Typ)	Power Dissipation (Max) [Max]	Digit/Alpha Size	Digit/Alpha Size [custom]	Package / Case	Millicandela Rating	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Characters [custom]	Display Type	Current - Test	Common Pin	Color	Wavelength - Peak
Kingbright ACPSA04-41CGKWA	2.1 V	75 mw	10.16 mm	0.4 in	16-SMD No Lead	11 mcd	0.512 "	13 mm	9.3 mm	0.366 "	0.148 "	3.75 mm	1	14-Segment Alphanumeric	20 mA	Common Anode	Green
Kingbright ACPSA04-41SEKWA	2.1 V	75 mw	10.16 mm	0.4 in	16-SMD No Lead	44 mcd	0.512 "	13 mm	9.3 mm	0.366 "	0.148 "	3.75 mm	1	14-Segment Alphanumeric	20 mA	Common Anode		610 nm
Kingbright ACPSA04-41SGWA	2.2 V	62.5 mW	10.16 mm	0.4 in	16-SMD No Lead	2.9 mcd	0.512 "	13 mm	9.3 mm	0.366 "	0.148 "	3.75 mm	1	14-Segment Alphanumeric	20 mA	Common Anode	Green	565 nm
Kingbright ACPSA04-41SURKWA	1.95 V	75 mw	10.16 mm	0.4 in	16-SMD No Lead	36 mcd	0.512 "	13 mm	9.3 mm	0.366 "	0.148 "	3.75 mm	1	14-Segment Alphanumeric	20 mA	Common Anode	Red	650 nm
Kingbright ACPSA04-41SYKWA	2 V	75 mw	10.16 mm	0.4 in	16-SMD No Lead	46 mcd	0.512 "	13 mm	9.3 mm	0.366 "	0.148 "	3.75 mm	1	14-Segment Alphanumeric	20 mA	Common Anode	Yellow	590 nm
Kingbright ACPSA04-41PBWA/A	3.2 V	120 mW	10.16 mm	0.4 in	16-SMD No Lead		0.512 "	13 mm	9.3 mm	0.366 "	0.148 "	3.75 mm	1	14-Segment Alphanumeric	20 mA	Common Anode	Blue	468 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.74
		10	$ 3.26
		100	$ 2.50
	Tape & Reel (TR)	400	$ 2.24
		800	$ 2.14
		1200	$ 2.09
		2000	$ 2.04
		2800	$ 2.00
		4000	$ 1.97

Description

General part information

ACPSA04 Series

Display Modules - LED Character and Numeric Red 14-Segment, Alphanumeric 1 Character Common Anode 1.95V 20mA 0.512" H x 0.366" W x 0.148" D (13.00mm x 9.30mm x 3.75mm) 16-SMD, No Lead
