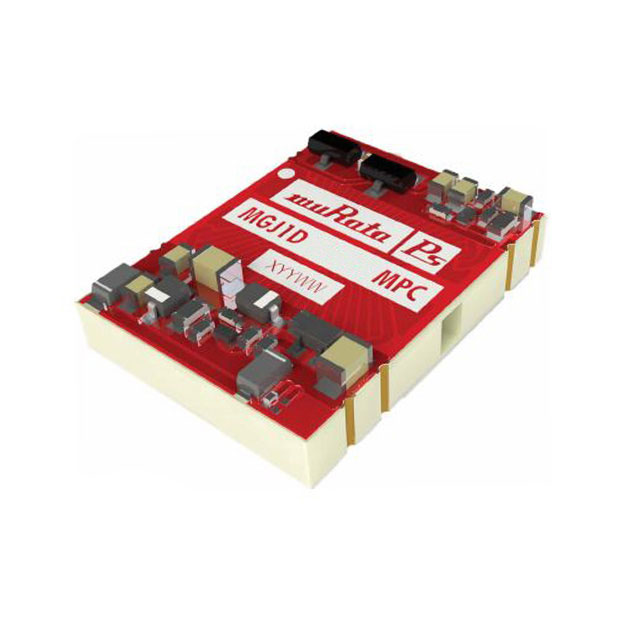

MGJ1D241505MPC-R7
ActiveMurata Power Solutions Inc.
ISOLATED SURFACE MOUNT DC/DC CONVERTER, GATE DRIVE, DIP, 1:1, 1 W, 2 OUTPUT, 15 V
Deep-Dive with AI
Search across all available documentation for this part.
MGJ1D241505MPC-R7
ActiveMurata Power Solutions Inc.
ISOLATED SURFACE MOUNT DC/DC CONVERTER, GATE DRIVE, DIP, 1:1, 1 W, 2 OUTPUT, 15 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MGJ1D241505MPC-R7 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Current - Output (Max) | 50 mA |
| Current - Output (Max) | 50 mA |
| Efficiency | 64 % |
| Features | SCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-SMD Module |
| Size / Dimension [x] | 0.78 " |
| Size / Dimension [x] | 19.7 mm |
| Size / Dimension [y] | 15 mm |
| Size / Dimension [y] | 0.59 in |
| Size / Dimension [z] | 4.4 mm |
| Size / Dimension [z] | 0.17 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 26.4 V |
| Voltage - Input (Min) [Min] | 21.6 V |
| Voltage - Isolation | 5.2 kV |
| Voltage - Output 1 | 15 V |
| Voltage - Output 2 | -5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
MGJ1D24 Series
Isolated Module DC DC Converter 2 Output 15V -5V 50mA, 50mA 21.6V - 26.4V Input
