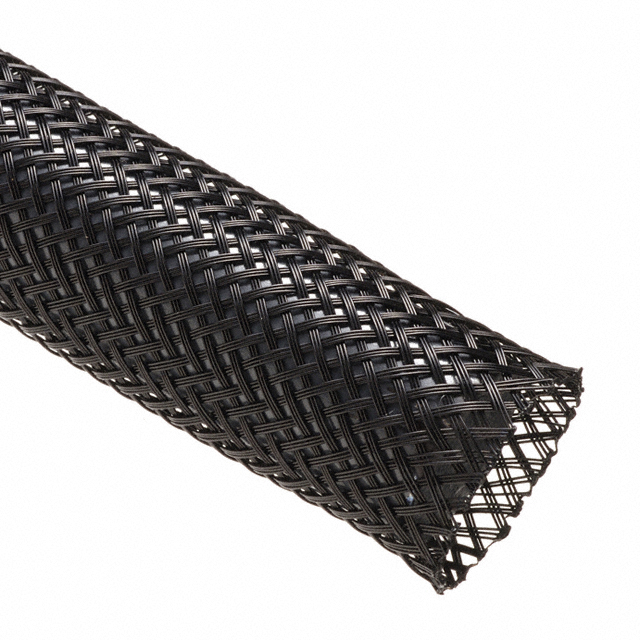

HWN2.00BK200

Active

Techflex

EXPANDABLE SLEEVE 2" X 200' BLK

Search across all available documentation for this part.

Active

Techflex

EXPANDABLE SLEEVE 2" X 200' BLK

Technical Specifications

Parameters and characteristics for this part

Specification	HWN2.00BK200

Abrasion Protection	Abrasion and Cut Resistant
Color	Black
Diameter - Inside, Expanded	76.2 mm
Diameter - Inside, Expanded [diameter]	3 in
Diameter - Inside, Non-Expanded [diameter]	50.8 mm
Diameter - Inside, Non-Expanded [diameter]	2 in
Environment Protection	UV Resistant
Features	Clean Cut, Chemical Resistant, Solvent Resistant
Length	60.96 m
Length	200 '
Liquid Protection	Salt Water Resistant, Gasoline Resistant
Material	Polyethylene Terephthalate (PET), Halogen Free
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-70 °C
Type	Sleeve
Type Attributes	Expandable
Wall Thickness [custom]	0.96 mm
Wall Thickness [custom]	0.038 in

Part	Diameter - Inside, Expanded	Diameter - Inside, Expanded [diameter]	Type	Environment Protection	Length	Length	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Abrasion Protection	Type Attributes	Material	Color	Wall Thickness [custom]	Wall Thickness [custom]	Liquid Protection	Features	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]
Techflex HWN2.00BK200	76.2 mm	3 in	Sleeve	UV Resistant	60.96 m	200 '	50.8 mm	2 in	Abrasion and Cut Resistant	Expandable	Polyethylene Terephthalate (PET) Halogen Free	Black	0.96 mm	0.038 in	Gasoline Resistant Salt Water Resistant	Chemical Resistant Clean Cut Solvent Resistant	UL94 V-0	125 °C	-70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 319.79

General part information

Sleeve X 200' (60.96m) Black
