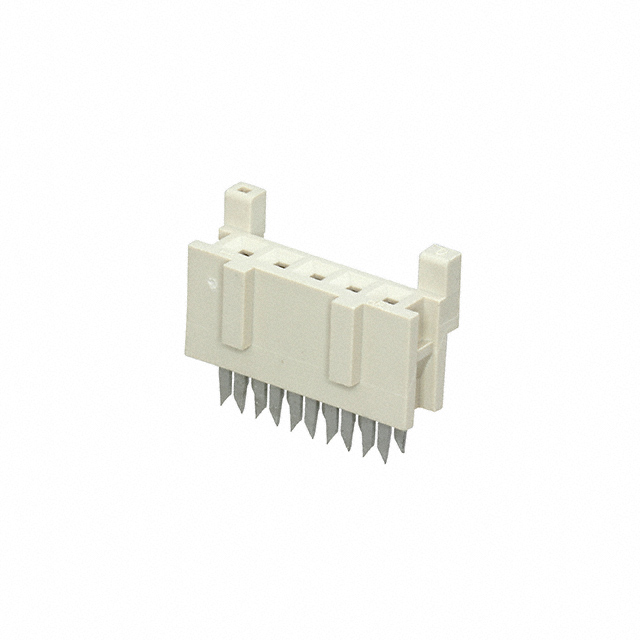

DF1-5S-2.5R24(05)

LTB

Hirose Electric USA, Inc.

CONN SOCKET 5POS IDC 24AWG TIN

Search across all available documentation for this part.

LTB

Hirose Electric USA, Inc.

CONN SOCKET 5POS IDC 24AWG TIN

Technical Specifications

Parameters and characteristics for this part

Part	Termination	Voltage Rating	Connector Type	Contact Type	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Fastening Type	Contact Material	Insulation Color	Style	Insulation Height	Insulation Height	Contact Shape	Overall Contact Length	Overall Contact Length	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Finish - Post	Material Flammability Rating	Mounting Type	Insulation Material	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Number of Rows	Note	Contact Termination	Pitch [x]	Pitch [x]	Color	Cable Termination	Features	Wire Type	Contact Finish	Wire Gauge
Hirose Electric USA, Inc. DF1-5P-2.5DSA(05)	Solder	250 VDC	Header	Male Pin	0.118 in	3 mm	0.177 in	4.5 mm	Friction Lock	Brass	Brown	Board to Cable/Wire	0.295 in	7.5 mm	Square	10 mm	0.394 in	2.5 mm	0.098 in	All	Tin	UL94 V-0	Through Hole	Nylon Polyamide (PA)	Shrouded - 1 Wall	-30 ░C	85 °C	1 µm	39.4 µin	3 A	1
Hirose Electric USA, Inc. DF1-5S-2.5C			Socket	Female Socket																			Free Hanging (In-Line)	Nylon Polyamide (PA)		-30 ░C	85 °C				1	Contacts Not Included	Crimp	0.098 in	2.5 mm	Brown
Hirose Electric USA, Inc. DF1-5S-2.5R26(05)			Socket	Female Socket																			Free Hanging (In-Line)								1			0.098 in	2.5 mm	Brown	IDC	Feed Through	Discrete	Tin	26 AWG
Hirose Electric USA, Inc. DF1-5S-2.5R24(05)			Socket	Female Socket																			Free Hanging (In-Line)								1			0.098 in	2.5 mm	Brown	IDC	Feed Through	Discrete	Tin	24 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Rectangular Socket Connector IDC Tin 24 AWG
