1003-023-01300
ActiveCnC Tech, LLC

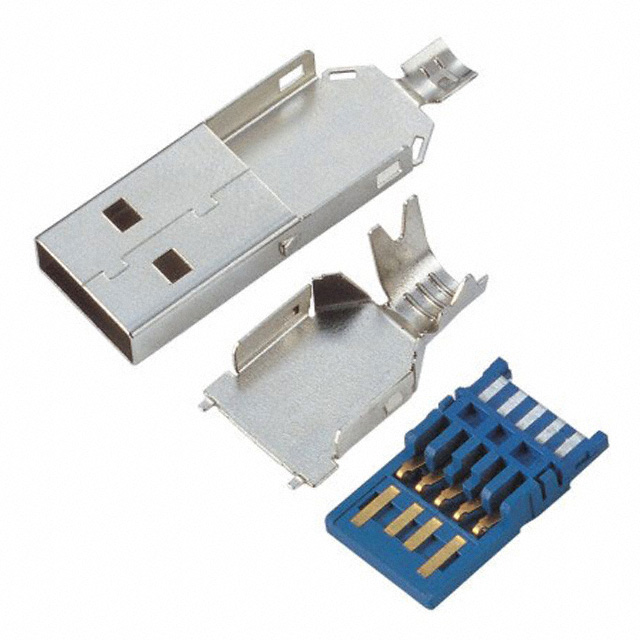

CONN PLUG USB3.0 TYPEA 9POS SLD
Deep-Dive with AI
Search across all available documentation for this part.
1003-023-01300
ActiveCnC Tech, LLC
CONN PLUG USB3.0 TYPEA 9POS SLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1003-023-01300 |
|---|---|
| Connector Type | USB-A (USB TYPE-A) |
| Contact Finish | Gold |
| Current Rating (Amps) | 1.5 A |
| Gender | Plug |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 5000 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Contacts | 9 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shell/Shielding Material | Steel |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.20 | |
| 10 | $ 2.00 | |||
| 25 | $ 1.89 | |||
| 40 | $ 1.85 | |||
| 80 | $ 1.76 | |||
| 230 | $ 1.55 | |||
Description
General part information
1003-023 Series
USB-A (USB TYPE-A) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Plug Connector 9 Position Free Hanging (In-Line)
