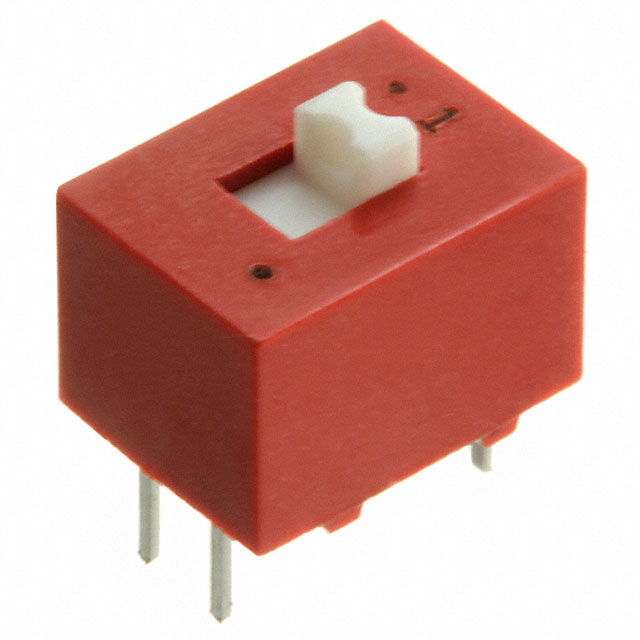

78J01T
ActiveGrayhill Inc.
SWITCH SLIDE DIP SPDT 0.15A 30V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
78J01T
ActiveGrayhill Inc.
SWITCH SLIDE DIP SPDT 0.15A 30V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 78J01T |
|---|---|
| Actuator Level | Raised |
| Actuator Type | Slide (Standard) |
| Body Material | Thermoplastic |
| Circuit | SPDT |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Electrical Life | 2000 Steps |
| Height Above Board [z] | 8 mm |
| Height Above Board [z] | 0.315 in |
| Length | 7.11 mm |
| Length | 0.28 " |
| Mechanical Life | 2000 Cycles |
| Mounting Type | Through Hole |
| Number of Positions | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | PC Pin |
| Voltage Rating | 30 VDC |
| Washable | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 5.30 | |
| 10 | $ 4.84 | |||
| 35 | $ 4.40 | |||
| 105 | $ 3.80 | |||
| 280 | $ 3.45 | |||
| 525 | $ 3.20 | |||
| 1015 | $ 2.97 | |||
| 2520 | $ 2.85 | |||
Description
General part information
78J01 Series
Dip Switch SPDT 1 Position Through Hole Slide (Standard) Actuator 150mA 30VDC
