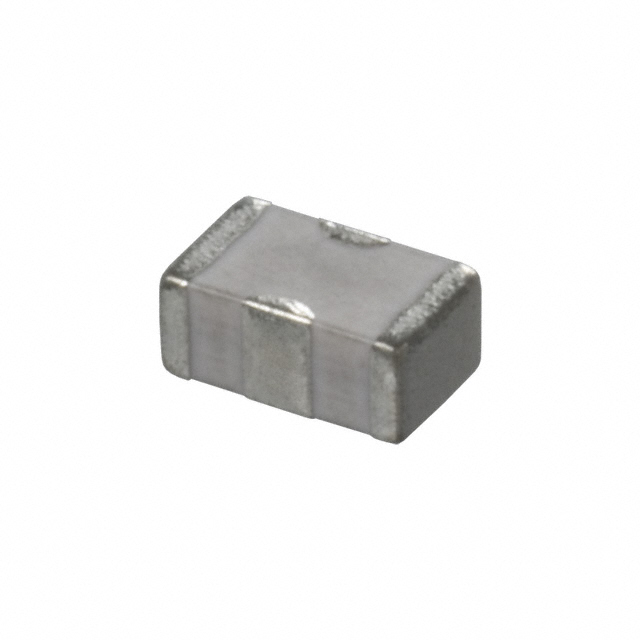

NFL21SP407X1C3D

Obsolete

Murata Power Solutions Inc.

FILTER LC(PI) 34NH/16PF SMD

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

FILTER LC(PI) 34NH/16PF SMD

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Number of Channels	Center / Cutoff Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Type	Height [z]	Height [z]	Applications	Voltage - Rated [custom]	Package / Case	Package / Case	Technology	Mounting Type	Filter Order	Values	Current	Values [custom]	Values [custom]
Murata Power Solutions Inc. NFL21SP307X1C3D	2 mm	0.079 in	0.049 in	1.25 mm	1	300 MHz	-55 °C	125 °C	Low Pass	0.037 in	0.95 mm	General Purpose	16 V	0805 (2012 Metric)	3 Lead	LC (Pi)	Surface Mount	3	19 pF 45 nH
Murata Power Solutions Inc. NFL21SP506X1C3D	2 mm	0.079 in	0.049 in	1.25 mm	1	50 MHz	-55 °C	125 °C	Low Pass	0.037 in	0.95 mm	General Purpose	16 V	0805 (2012 Metric)	3 Lead	LC (Pi)	Surface Mount	3	84 pF 305 nH	150 mA
Murata Power Solutions Inc. NFL21SP107X1C3D	2 mm	0.079 in	0.049 in	1.25 mm	1	100 MHz	-55 °C	125 °C	Low Pass	0.037 in	0.95 mm	General Purpose	16 V	0805 (2012 Metric)	3 Lead	LC (Pi)	Surface Mount	3	44 pF 135 nH	200 mA
Murata Power Solutions Inc. NFL21SP407X1C3D	2 mm	0.079 in	0.049 in	1.25 mm	1	400 MHz	-55 °C	125 °C	Low Pass	0.037 in	0.95 mm	General Purpose	16 V	0805 (2012 Metric)	3 Lead	LC (Pi)	Surface Mount	3	16 pF 34 nH
Murata Power Solutions Inc. NFL21SP507X1C3D	2 mm	0.079 in	0.049 in	1.25 mm	1	500 MHz	-55 °C	125 °C	Low Pass	0.037 in	0.95 mm	General Purpose	16 V	0805 (2012 Metric)	3 Lead	LC (Pi)	Surface Mount	3			31 nH	12 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel L = 34nH, C = 16pF 300 mA 0805 (2012 Metric), 3 PC Pad
