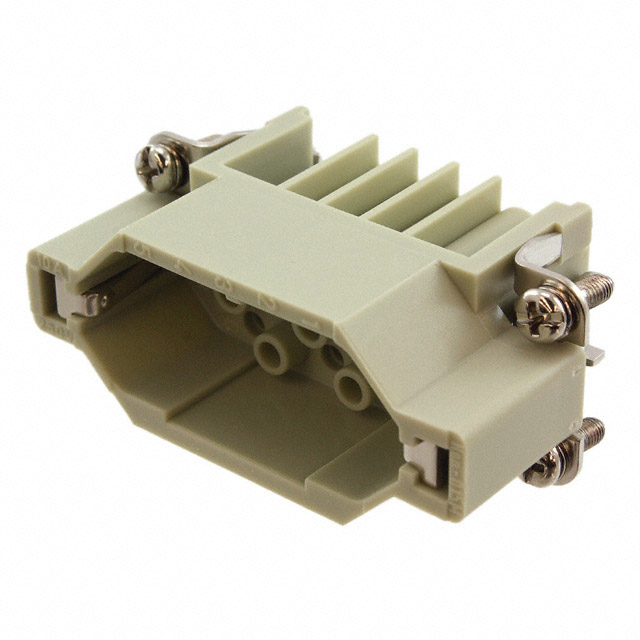

09210153001

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HEAVY-DUTY HAN SERIES, INSERT, 15+PE CONTACTS, 10A, PLUG, CRIMP PIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

09210153001

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HEAVY-DUTY HAN SERIES, INSERT, 15+PE CONTACTS, 10A, PLUG, CRIMP PIN

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09210153001

Color	Gray
Connector Type	Insert without Contacts
Contact Type	Han® D
Current Rating (Amps)	10 A
Gender	Male
Housing Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 HB
Number of Positions	15+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10 A
Termination Style	Crimp
Voltage Rating	600 V

09210153 Series

Part	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Size	Color	Termination Style	Current Rating (Amps)	Contact Type	Voltage Rating	Housing Material	Material Flammability Rating	Number of Positions	Number of Positions
HARTING Technology Group 09210153001	Male	125 °C	-40 °C	Insert without Contacts	10 A	Gray	Crimp	10 A	Han® D	600 V	Polyamide (PA) Nylon	UL94 HB	15+Ground
HARTING Technology Group 09210153106	Female			Insert without Contacts			Crimp							15

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.19
		10	$ 15.46
		25	$ 14.49
		50	$ 13.80
		100	$ 13.14
		250	$ 12.32
		500	$ 11.73
Newark	Each	1	$ 18.84
		10	$ 15.36
		25	$ 14.16
		50	$ 13.32
		100	$ 13.31

Description

General part information

09210153 Series

The 09210153001 is a 15-position Han D Male Insert Crimp for 10A series connectors. 0.14 to 2.5mm² wire cross section area with crimp terminals. Made of polyamide, RAL 7032 (light grey) color.
