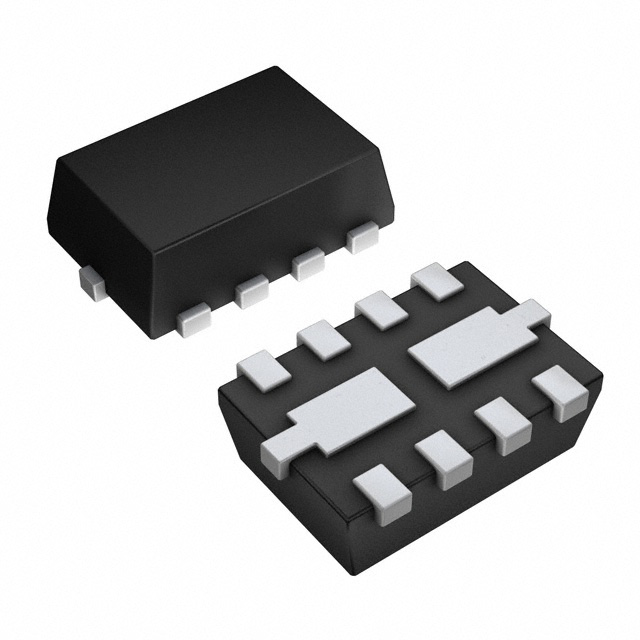

ZXTDA1M832TA

Obsolete

Diodes Inc

TRANS NPN/PNP 15V/12V 8MLP

Search across all available documentation for this part.

Obsolete

Diodes Inc

TRANS NPN/PNP 15V/12V 8MLP

Technical Specifications

Parameters and characteristics for this part

Specification	ZXTDA1M832TA

Current - Collector (Ic) (Max) [Max]	4 A, 4.5 A
Current - Collector Cutoff (Max) [Max]	25 nA
DC Current Gain (hFE) (Min) @ Ic, Vce	200, 180
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	8-VDFN Exposed Pad
Power - Max [Max]	1 W
Supplier Device Package	8-MLP (3x2)
Transistor Type	1 NPN, 1 PNP
Vce Saturation (Max) @ Ib, Ic	280 mV, 300 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	15 V
Voltage - Collector Emitter Breakdown (Max) [Min]	12 V

Part	DC Current Gain (hFE) (Min) @ Ic, Vce	Operating Temperature [Min]	Operating Temperature [Max]	Current - Collector (Ic) (Max) [Max]	Power - Max [Max]	Current - Collector Cutoff (Max) [Max]	Vce Saturation (Max) @ Ib, Ic	Voltage - Collector Emitter Breakdown (Max) [Min]	Voltage - Collector Emitter Breakdown (Max) [Max]	Transistor Type	Supplier Device Package	Package / Case	Mounting Type
Diodes Inc ZXTDA1M832TA	180 200	-55 °C	150 °C	4 A 4.5 A	1 W	25 nA	280 mV 300 mV	12 V	15 V	1 NPN 1 PNP	8-MLP (3x2)	8-VDFN Exposed Pad	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar (BJT) Transistor Array 1 NPN, 1 PNP 15V, 12V 4.5A, 4A 120MHz, 110MHz 1W Surface Mount 8-MLP (3x2)
