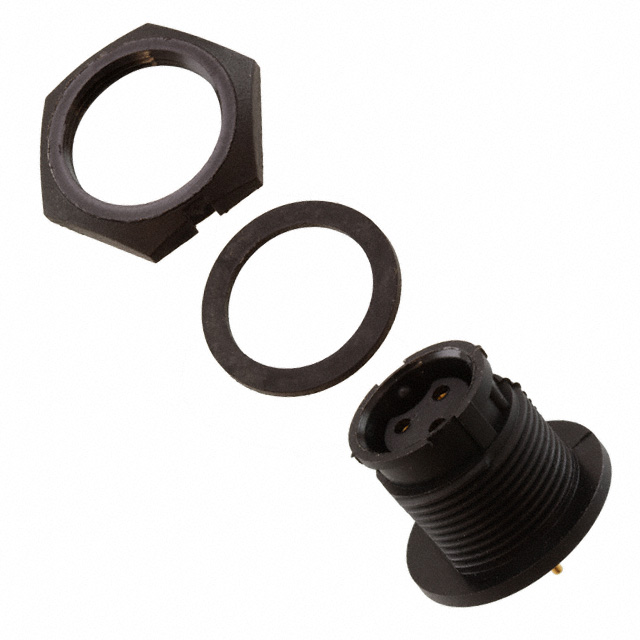

7381-3SG-300

Active

Conxall/Switchcraft

CONN RCPT FMALE 3POS GOLD SOLDER

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 3POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	7381-3SG-300

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Ingress Protection	Weathertight
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Solder
Voltage Rating	600 V

Part	Orientation	Color	Mounting Feature	Shielding	Backshell Material, Plating	Current Rating (Amps)	Fastening Type	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Material	Applications	Connector Type	Contact Finish - Mating	Mounting Type	Termination	Primary Material
Conxall/Switchcraft 7381-3SG-300	Keyed	Black	Bulkhead - Front Side Nut	Unshielded	Nylon Polyamide (PA)	Varies by Wire Gauge	Bayonet Lock	Weathertight	-40 °C	115 °C	600 V	Brass	Automotive Communication Systems Instrumentation	Receptacle Female Sockets	Gold	Panel Mount Through Hole	Solder	Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Female Sockets Solder
