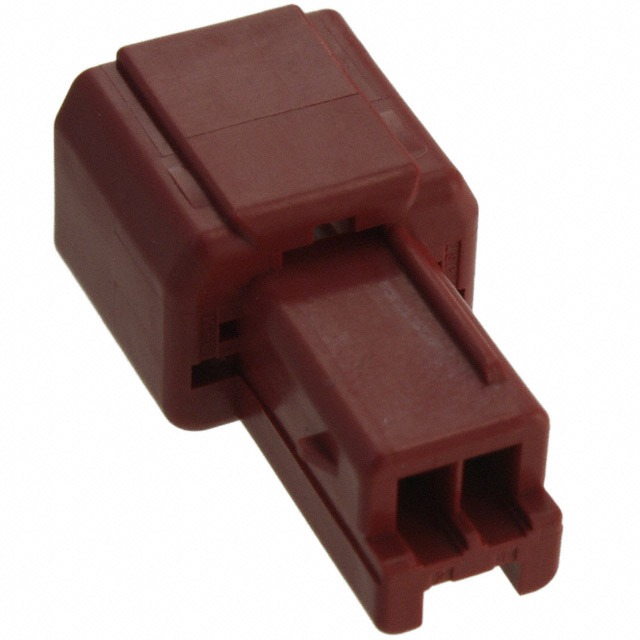

XMAR-02VF-2-R
ActiveJST Sales America Inc.
CONN RCPT HSG 2POS 2.50MM
Deep-Dive with AI
Search across all available documentation for this part.
XMAR-02VF-2-R
ActiveJST Sales America Inc.
CONN RCPT HSG 2POS 2.50MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XMAR-02VF-2-R |
|---|---|
| Color | Red |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch [x] | 0.098 in |
| Pitch [x] | 2.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.09 | |
Description
General part information
XMAR Series
2 Rectangular Connectors - Housings Receptacle Red 0.098" (2.50mm)
