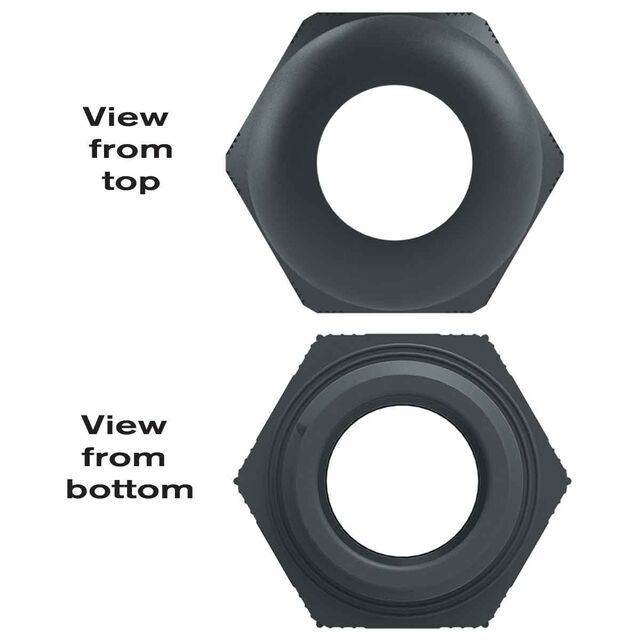

PMB-32R

Active

SAB North America

CORD GRIP M32 BLACK CR: 12 - 20

Search across all available documentation for this part.

Active

SAB North America

CORD GRIP M32 BLACK CR: 12 - 20

Technical Specifications

Parameters and characteristics for this part

Specification	PMB-32R

Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max) [Max]	20.02 mm
Outside Cable Diameter (Max) [Max]	0.788 in
Outside Cable Diameter (Min) [Min] [diameter]	12 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.472 in
Panel Hole Size	1.26 in
Panel Hole Size	32 mm
Thread Length	0.591 in
Thread Length	15 mm
Thread Size	M32x1.5
Type	Cable Gland

Part	Thread Size	Ingress Protection	Panel Hole Size	Panel Hole Size	Color	Operating Temperature [Max]	Operating Temperature [Min]	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]
SAB North America PMB-32R	M32x1.5	IP68 - Dust Tight Waterproof	1.26 in	32 mm	Black	100 °C	-20 C	Cable Gland	12 mm	0.472 in	0.591 in	15 mm	20.02 mm	0.788 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cable Gland Polyamide (PA6), Nylon 6 M32x1.5 Black
