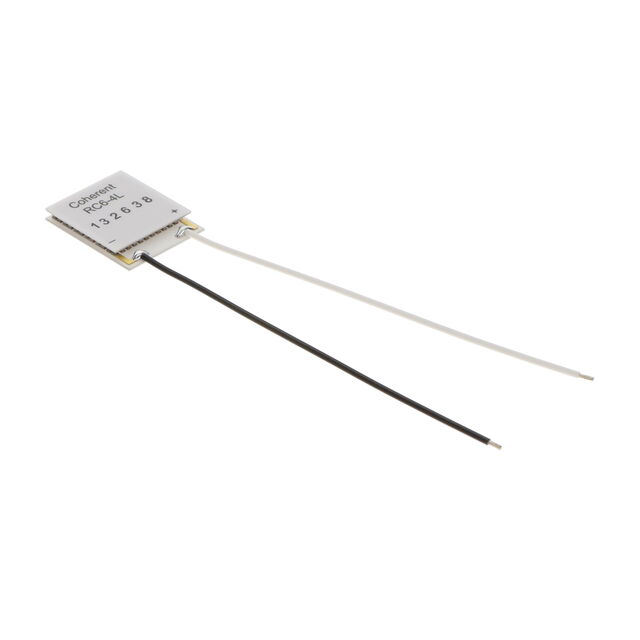

RC6-4-01L
ActiveMarlow Industries, Inc.
TEM 23.5X23.5X3.33MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RC6-4-01L
ActiveMarlow Industries, Inc.
TEM 23.5X23.5X3.33MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RC6-4-01L |
|---|---|
| Current - Max [Max] | 3.7 A |
| Delta Tmax @ Th | 65 °C |
| Features | Lead Wires, Lapped |
| Height [z] | 3.33 mm |
| Number of Stages | 1 |
| Operating Temperature | 130 °C |
| Qmax @ Th | 20 W |
| Resistance | 1.8 Ohms |
| Size / Dimension [x] | 28 mm |
| Size / Dimension [y] | 23.5 mm |
| Voltage - Max [Max] | 8.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 20.95 | |
| 5 | $ 19.67 | |||
| 10 | $ 19.20 | |||
| 25 | $ 18.50 | |||
| 50 | $ 18.03 | |||
| 100 | $ 17.56 | |||
Description
General part information
RC6-4 Series
Peltier Module 20.0W @ 27°C 3.7 A 130°C
