307-080-522-201
ActiveEDAC Inc.

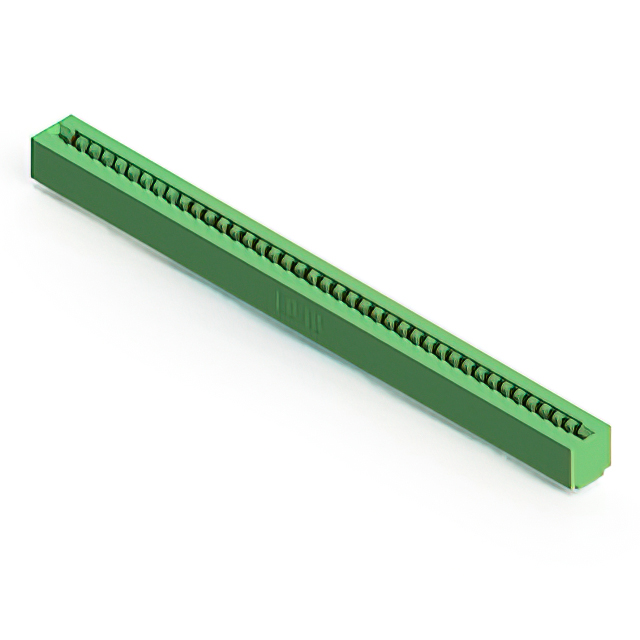

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 80 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
307-080-522-201
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 80 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 307-080-522-201 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 80 |
| Number of Positions/Bay/Row [custom] | 40 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
307-080 Series
...
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Color | Pitch [x] | Pitch [x] | Mounting Type | Contact Type | Read Out | Contact Finish | Gender | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Material | Material - Insulation | Number of Positions/Bay/Row [custom] | Termination | Number of Positions | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | -40 °C | 105 ░C | Non Specified - Dual Edge | Green | 0.156 in | 3.96 mm | Through Hole | Semi Bellows | Dual | Tin | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Copper Alloy | Polyester Thermoplastic | 40 | Solder | 80 | 2 | |||
EDAC Inc. | -40 °C | 105 ░C | Non Specified - Dual Edge | Green | 0.156 in | 3.96 mm | Through Hole | Semi Bellows | Dual | Tin | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Copper Alloy | Polyester Thermoplastic | 40 | Solder | 80 | 2 | |||
EDAC Inc. | -40 °C | 105 ░C | Non Specified - Dual Edge | Green | 0.156 in | 3.96 mm | Through Hole | Semi Bellows | Dual | Tin | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | Copper Alloy | Polyester Thermoplastic | 40 | Solder | 80 | 2 | |||
EDAC Inc. | -40 °C | 105 ░C | Non Specified - Dual Edge | Green | 0.156 in | 3.96 mm | Through Hole | Semi Bellows | Dual | Gold | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Polyester Thermoplastic | 40 | Wire Wrap | 80 | 2 | 10 Áin | 0.25 Ám | Card Guides | ||
EDAC Inc. | -40 °C | 105 ░C | Non Specified - Dual Edge | Green | 0.156 in | 3.96 mm | Through Hole | Semi Bellows | Dual | Gold | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Copper Alloy | Polyester Thermoplastic | 40 | Wire Wrap | 80 | 2 | 10 Áin | 0.25 Ám | |
EDAC Inc. | -40 °C | 105 ░C | Non Specified - Dual Edge | Green | 0.156 in | 3.96 mm | Through Hole Right Angle | Semi Bellows | Dual | Gold | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Copper Alloy | Polyester Thermoplastic | 40 | Solder | 80 | 2 | 10 Áin | 0.25 Ám | |
EDAC Inc. | -40 °C | 105 ░C | Non Specified - Dual Edge | Green | 0.156 in | 3.96 mm | Through Hole | Semi Bellows | Dual | Gold | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | Copper Alloy | Polyester Thermoplastic | 40 | Wire Wrap | 80 | 2 | 10 Áin | 0.25 Ám | |
EDAC Inc. | -40 °C | 105 ░C | Non Specified - Dual Edge | Green | 0.156 in | 3.96 mm | Board Edge Straddle Mount | Semi Bellows | Dual | Gold | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Polyester Thermoplastic | 40 | Solder | 80 | 2 | 10 Áin | 0.25 Ám | Card Extender | ||
EDAC Inc. | -40 °C | 105 ░C | Non Specified - Dual Edge | Green | 0.156 in | 3.96 mm | Through Hole Right Angle | Semi Bellows | Dual | Gold | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Copper Alloy | Polyester Thermoplastic | 40 | Solder | 80 | 2 | 10 Áin | 0.25 Ám | |
EDAC Inc. | -40 °C | 105 ░C | Non Specified - Dual Edge | Green | 0.156 in | 3.96 mm | Through Hole | Semi Bellows | Dual | Gold | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Copper Alloy | Polyester Thermoplastic | 40 | Solder | 80 | 2 | 10 Áin | 0.25 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
307-080 Series
80 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
